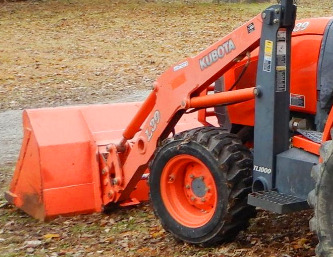

Kubota TL1000 Front End Loader
The
Kubota TL1000 front end loader is designed for Kubota L39 tractor loader
backhoe. The front end loader has double acting hydraulic bucket and lift
cylinders. The Kubota TL1000 front end loader has a lift capacity of 2767 lbs
(1255 kg) at bucket pin to max height of 114.2" (2900 mm), and breakout force
(bucket on ground) of 3560 lbs (1620 kg). The clearance with a bucket dumped is
90" (2285 mm) at maximum dump angle of 45 degrees.
The estimated cycle times are 3.7 seconds lifting to maximum height, and
1.7 seconds maximum bucket dumping. The Kubota TL1000 loader is
compatible with the following buckets: a 72" (1820 mm) heavy-duty
material bucket with a rated capacity of 0.44 m3 (15.5 cu.ft), and 72"
(1820 mm) 4-in-1 bucket with a rated capacity of 0.37 m3 (13.1 cu.ft).
| Tractor models |
Kubota L39 TLB |
| Front tires |
27x10.5-15 |
| Rear tires |
15-19.5 |
| Rated flow, gpm (lpm) |
23.4 (88.7) |
| Maximum pressure, psi (bar) |
2845 (196) |
| Loader model |
Kubota TL1000 |
| Leveling System |
Standard, Hydraulic |
| Tool Attachment |
Pin Type |
| Net weight, lbs (kg) |
958 (435) |
| Heavy-Duty Material Bucket |
| Order code |
TL1765A |
| Width, in (mm) |
72 (1820) |
| Capacity (struck), cu.ft (m3) |
12.7 (0.36) |
| Capacity (heaped), cu.ft (m3) |
15.5 (0.44) |
| Weight, lb (kg) |
336 (153) |
| Order code |
L2245 |
| Width, in (mm) |
72 (1820) |
| Capacity (struck), cu.ft (m3) |
10.9 (0.31) |
| Capacity (heaped), cu.ft (m3) |
13.1 (0.37) |
| Weight, lb (kg) |
675 (307) |
| Maximum lift height to pivot pin, in (mm) |
114.2 (2900) |
| Clearance with bucket dumped, in (mm) |
90.0 (2285) |
| Reach at maximum height, in (mm) |
20.5 (520) |
| Maximum dump angle, degrees |
45 |
| Reach with bucket on ground, in (mm) |
72.0 (1830) |
| Bucket rollback angle, degrees |
45 |
| Digging depth, in (mm) |
5.0 (125) |
| Overall height in carrying position, in (mm) |
45.3 (1150) |
| Lift capacity to maximum height at bucket bottom mid point, lbs (kg) |
2200 (1000) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
2767 (1255) |
| Breakout force at pivot pin, lbs (kg) |
3560 (1620) |
| Raise to full height |
3.7 sec. |
| Lowering time self level valve |
3.1 sec. |
| Bucket rollback time |
2.0 sec. |
| Bucket dumping time |
1.7 sec. |
