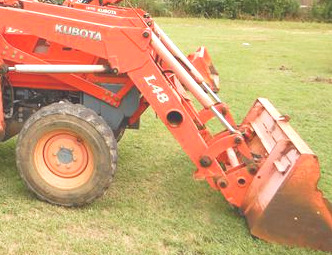

Kubota TL1150 Front End Loader
The
Kubota TL1150 loader fits Kubota L48 tractor loader backhoe. The loader has
double acting bucket and lift hydraulic cylinders. The Kubota TL1150 front-end
loader has a max lift height of 116.1" (2950 mm) at pin and bucket dump
clearance of 88.8" (2255 mm). The lift capacity is 3000 lbs (1360 kg) to max
height at pin, and boom breakout force is 4375 lbs (1990 kg). The rated cycle
times are 4.1 seconds raising to maximum height, and 2.9 seconds maximum bucket
dumping.
The Kubota TL1150 loader is equipped with the following buckets: a 72"
(1820 mm) mtandard material bucket with a rated capacity of 0.37 m3
(13.1 cu.ft), and 72" (1820 mm) light material bucket with a rated
capacity of 0.44 m3 (15.5 cu.ft).
| Tractor models |
Kubota L48 TLB |
| Front tires |
10.0-16.5 |
| Rear tires |
17.5L-24 |
| Rated flow, gpm (lpm) |
25.9 (98.2) |
| Maximum pressure, psi (bar) |
2845 (196) |
| Loader model |
Kubota TL1150 |
| Leveling System |
Standard, Hydraulic |
| Tool Attachment |
Pin Type |
| Net weight, lbs (kg) |
1080 (490) |
| Width, in (mm) |
72 (1820) |
| Depth, in (mm) |
21.5 (547) |
| Height, in (mm) |
22.4 (570) |
| Length, in (mm) |
24.8 (630) |
| Capacity (Struck), cu.ft (m3) |
10.9 (0.31) |
| Capacity (Heaped), cu.ft (m3) |
13.1 (0.37) |
| Weight, lbs (kg) |
330 (150) |
| Width, in (mm) |
72 (1820) |
| Depth, in (mm) |
18.5 (470) |
| Height, in (mm) |
26 (660) |
| Length, in (mm) |
24 (610) |
| Capacity (Struck), cu.ft (m3) |
12.7 (0.36) |
| Capacity (Heaped), cu.ft (m3) |
15.5 (0.44) |
| Weight, lbs (kg) |
420 (190) |
| Maximum lift height to pivot pin, in (mm) |
116.1 (2950) |
| Clearance with bucket dumped, in (mm) |
88.8 (2255) |
| Reach at maximum height, in (mm) |
22.8 (580) |
| Maximum dump angle, degrees |
45 |
| Reach with bucket on ground, in (mm) |
71.3 (1810) |
| Bucket rollback angle, degrees |
45 |
| Digging depth, in (mm) |
5.9 (150) |
| Overall height in carrying position, in (mm) |
55.1 (1400) |
| Lift capacity to maximum height at bucket bottom mid point, lbs (kg) |
2540 (1150) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
3000 (1360) |
| Breakout force at pivot pin, lbs (kg) |
4375 (1990) |
| Raise to full height |
4.1 sec. |
| Lowering time self level valve |
4.3 sec. |
| Bucket rollback time |
2.9 sec. |
| Bucket dumping time |
2.9 sec. |
