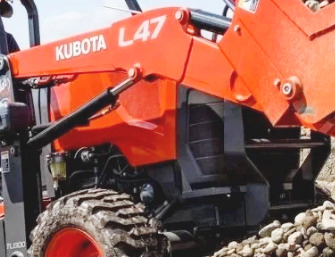

Kubota TL1300 Front End Loader

The Kubota TL1300 loader is used for Kubota L47 TLB. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Kubota TL1300 front end loader has a lifting capacity (at pivot pin) of 2850 lbs (1292 kg) to a maximum height of 114" (2895 mm), and bucket's breakout force of 4530 lbs (2060 kg). The bucket dump clearance is 90" (2290 mm) at maximum dump angle of 44 degrees.

The rated cycle times are 3.2 seconds lifting to maximum height, and 1.9 seconds to full bucket dump. The Kubota TL1300 loader is equipped with the following buckets: a 72" (1820 mm) heavy-duty material bucket with a rated capacity of 0.44 m3 (15.5 cu.ft), and 72" (1820 mm) 4-in-1 bucket with a rated capacity of 0.37 m3 (13.1 cu.ft).

Compatible Tractors
Tractor models Kubota L47 TLB
Front tires 27x10.5-15
Rear tires 15-19.5
Rated flow, gpm (lpm) 16.2 (60.5)
Maximum pressure, psi (bar) 2845 (196)

Loader
Loader model Kubota TL1300
Boom cylinder bore, in (mm) 2.17 (55)
Boom cylinder stroke, in (mm) 21.7 (550)
Bucket cylinder bore, in (mm) 2.36 (60)
Bucket cylinder stroke, in (mm) 14.8 (365)
Net weight, lbs (kg) 960 (435)

Heavy-Duty Material Bucket
Order code TL1765A
Width, in (mm) 72 (1820)
Capacity (struck), cu.ft (m3) 12.7 (0.36)
Capacity (heaped), cu.ft (m3) 15.5 (0.44)
Weight, lb (kg) 336 (153)

4 in 1 Bucket
Order code L2245
Width, in (mm) 72 (1820)
Capacity (struck), cu.ft (m3) 10.9 (0.31)
Capacity (heaped), cu.ft (m3) 13.1 (0.37)
Weight, lb (kg) 675 (307)

Loader Dimensions
Maximum lift height to pivot pin, in (mm) 114 (2895)
Maximum lift height under level bucket, in (mm) 106 (2690)
Clearance with bucket dumped, in (mm) 90 (2290)
Reach at maximum height, in (mm) 16.6 (422)
Maximum dump angle, degrees 44
Reach with bucket on ground, in (mm) 68.5 (1740)
Bucket rollback angle, degrees 48
Digging depth, in (mm) 3.5 (89)
Overall height in carrying position, in (mm) 55.2 (1400)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 2850 (1292)
Lift capacity to maximum height at 19.5" (0.5m) forward of pivot pin, lbs (kg) 2065 (936)
Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) 3385 (1535)
Lift capacity to 59" (1.5m) height at 19.5" (0.5m) forward of pivot pin, lbs (kg) 2720 (1232)
Breakout force at pivot pin, lbs (kg) 4530 (2060)
Breakout force at 19.5" (0.5m) forward of pivot pin, lbs (kg) 3500 (1590)
Rollback force at maximum height, lbs (kg) 2620 (1190)

Cycle Times
Raise to full height 3.2 sec.
Lowering time self level valve 2.9 sec.
Bucket rollback time 2.2 sec.
Bucket dumping time 1.9 sec.
