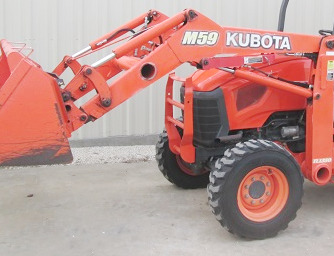

Kubota TL1350 Front End Loader

The Kubota TL1350 loader is compatible with Kubota M59 tractor loader backhoe. The front end loader has double acting boom and bucket hydraulic cylinders. The Kubota TL1350 loader has a lift capacity of 3960 lbs (1796 kg) at pivot pin to maximum height of 126.1 in (3203 mm), and breakout force of 5990 lbs (2725 kg) with bucket on ground.

A full dump clearance with a 43-degree maximum dump angle is 95 in (2412 mm). The rated cycle times are 4.2 sec raising to maximum height, and 2.4 sec full bucket rollback. The Kubota TL1350 loader is equipped with a 84" (2125 mm) heavy-duty material bucket with a rated capacity of 0.66 m3 (23.3 cu.ft).

Compatible Tractors
Tractor models Kubota M59
Front tires 10.0x16.5
Rear tires 17.5Lx24
Rated flow, gpm (lpm) 30.9 (117.0)
Maximum pressure, psi (bar) 2850 (196)

Loader
Loader model Kubota TL1350
Leveling System Standard, Hydraulic
Tool Attachment Pin Type
Net weight, lbs (kg) 1170 (530)

Heavy-Duty Material Bucket
Width, in (mm) 84 (2125)
Depth, in (mm) 27.4 (695)
Height, in (mm) 26.5 (673)
Length, in (mm) 35.1 (892)
Capacity (Struck), cu.ft (m3) 19.1 (0.54)
Capacity (Heaped), cu.ft (m3) 23.3 (0.66)
Weight, lbs (kg) 540 (244)

Loader Dimensions
Maximum lift height to pivot pin, in (mm) 126.1 (3203)
Clearance with bucket dumped, in (mm) 95.0 (2412)
Reach at maximum height, in (mm) 22.9 (582)
Maximum dump angle, degrees 43
Reach with bucket on ground, in (mm) 71.7 (1821)
Bucket rollback angle, degrees 45
Digging depth, in (mm) 2.7 (69)
Overall height in carrying position, in (mm) 63.0 (1600)

Operating Data
Lift capacity to maximum height at bucket bottom mid point, lbs (kg) 2976 (1350)
Lift capacity to maximum height at pivot pin, lbs (kg) 3960 (1796)
Breakout force at pivot pin, lbs (kg) 5990 (2725)

Cycle Times
Raise to full height 4.2 sec.
Lowering time self level valve 4.3 sec.
Bucket rollback time 2.4 sec.
