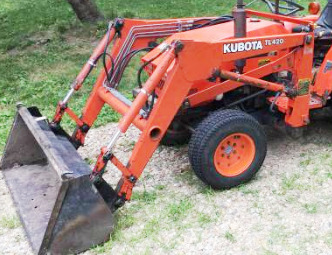

Kubota TL420 Front End Loader

The Kubota TL420 mechanical self leveling loader fits Kubota B20 TLB tractor. The loader has double acting bucket and lift hydraulic cylinders. The Kubota TL420 front-end loader has a max lift height of 2190 mm (86.3 in) at pin and bucket dump clearance of 1670 mm (66.1 in). The lift capacity is 420 kg (926 lbs) to max height at pin, and boom breakout force is 700 kg (1545 lbs).

The rated cycle times are 2.9 seconds raising to maximum height, and 2.2 seconds maximum bucket dumping. The Kubota TL420 loader is equipped with a 54" (1370 mm) standard material bucket with a rated capacity of 0.23 m3 (8.1 cu.ft).

Compatible Tractors
Tractor model Kubota B20 TLB
Front tires 23x8.50-12
Rear tires 12.4x16
Rated flow, lpm (gpm) 26.5 (7.0)
Maximum pressure, bar (psi) 138 (2000)

Loader
Loader model Kubota TL420
Leveling system Mechanical self leveling
Net weight, lbs (kg) 510 (230)

Standard Material Bucket
Width, mm (in) 1370 (54.0)
Depth, mm (in) 485 (19.1)
Height, mm (in) 525 (20.6)
Length, mm (in) 530 (20.8)
Capacity (Struck), m3 (cu.ft.) 0.19 (6.7)
Capacity (Heaped), m3 (cu.ft.) 0.23 (8.1)
Weight, kg (lbs) 79 (175)

Loader Dimensions
Maximum lift height to pivot pin, mm (in) 2190 (86.3)
Clearance with bucket dumped, mm (in) 1670 (66.1)
Reach at maximum height, mm (in) 580 (23.1)
Maximum dump angle, degrees 40
Reach with bucket on ground, mm (in) 1440 (56.9)
Bucket rollback angle, degrees 40
Digging depth, mm (in) 135 (5.3)

Operating Data
Lift capacity to maximum height at pivot pin, kg (lbs) 420 (926)
Breakout force at pivot pin, kg (lbs) 700 (1545)

Cycle Times
Raise to full height 2.9 sec.
Lowering time self level valve 2.1 sec.
Bucket rollback time 2.3 sec.
Bucket dumping time 2.2 sec.
