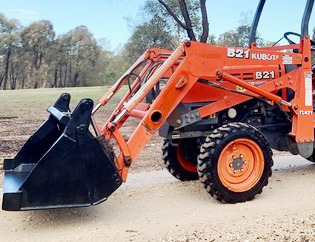

Kubota TL421 Front End Loader

The Kubota TL421 MSL loader is used for Kubota B21 tractor loader backhoe. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Kubota TL421 front end loader has a lifting capacity (at pivot pin) of 420 kg (926 lbs) to a maximum height of 2250 mm (88.8"), and bucket's breakout force of 699 kg (1544 lbs).

The bucket dump clearance is 1700 mm (67.2") at maximum dump angle of 45 degrees. The rated cycle times are 3 seconds lifting to maximum height, and 1.8 seconds to full bucket dump. The Kubota TL421 loader is compatible with a 54" (1370 mm) standard material bucket with a rated capacity of 0.23 m3 (8.1 cu.ft).

Compatible Tractors
Tractor model Kubota B21
Front tires 23x8.50-14
Rear tires 12.4x16
Rated flow, lpm (gpm) 26.9 (7.1)
Maximum pressure, bar (psi) 138 (2000)

Loader
Loader model Kubota TL421
Leveling system Mechanical self leveling
Net weight, lbs (kg) 510 (230)

Standard Material Bucket
Width, mm (in) 1370 (54.0)
Depth, mm (in) 485 (19.1)
Height, mm (in) 525 (20.6)
Length, mm (in) 530 (20.8)
Capacity (Struck), m3 (cu.ft.) 0.19 (6.7)
Capacity (Heaped), m3 (cu.ft.) 0.23 (8.1)
Weight, kg (lbs) 80 (175)

Loader Dimensions
Maximum lift height to pivot pin, mm (in) 2250 (88.8)
Clearance with bucket dumped, mm (in) 1700 (67.2)
Reach at maximum height, mm (in) 600 (23.7)
Maximum dump angle, degrees 45
Reach with bucket on ground, mm (in) 1500 (59.3)
Bucket rollback angle, degrees 40
Digging depth, mm (in) 127 (5.0)
Operating Data
Lift capacity to maximum height at pivot pin, kg (lbs) 420 (926)
Breakout force at pivot pin, kg (lbs) 699 (1544)

Cycle Times
Raise to full height 3.0 sec.
Lowering time self level valve 1.8 sec.
Bucket rollback time 2.8 sec.
Bucket dumping time 1.8 sec.
