Kubota TL500 Front End Loader

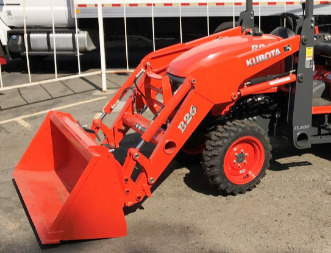

The Kubota TL500 loader is compatible with Kubota B26 tractor loader backhoe. The front end loader has double acting boom and bucket hydraulic cylinders. The Kubota TL500 loader has a lift capacity of 1301 lbs (590 kg) at pivot pin to maximum height of 94.5" (2400 mm), and breakout force (bucket on ground) of 2343 lbs (1065 kg). A full dump clearance with a 45-degree maximum dump angle is 70" (1780 mm).

The rated cycle times are 3.5 sec raising to maximum height, and 1.7 sec full bucket dumping. The Kubota TL500 loader is equipped with the following buckets: a 60" (1520 mm) heavy-duty material bucket with a rated capacity of 0.27 m3 (9.5 cu.ft), and 66" (1670 mm) light material bucket with a rated capacity of 0.39 m3 (13.8 cu.ft).

Compatible Tractors
Tractor models Kubota B26
Front tires 23x8.50-14
Rear tires 12.4x16
Rated flow, gpm (lpm) 11.2 (42.5)
Maximum pressure, psi (bar) 2400 (166)

Loader
Loader model Kubota TL500
Boom cylinder bore, in (mm) 1.97 (50)
Boom cylinder stroke, in (mm) 15.7 (400)
Bucket cylinder bore, in (mm) 2.17 (55)
Bucket cylinder stroke, in (mm) 15.1 (383)
Net weight, lbs (kg) 628 (285)

Heavy-Duty Material Bucket
Bucket Type Quick attach
Width, in (mm) 60 (1520)
Depth, in (mm) 17.8 (453)
Height, in (mm) 23 (584)
Length, in (mm) 25.4 (646)
Capacity (Struck), cu.ft (m3) 7.8 (0.22)
Capacity (Heaped), cu.ft (m3) 9.5 (0.27)
Weight, lbs (kg) 278 (126)

Light Material Bucket
Bucket Type Quick attach
Width, in (mm) 66 (1670)
Depth, in (mm) 24.5 (623)
Height, in (mm) 23 (584)
Length, in (mm) 32.1 (816)
Capacity (Struck), cu.ft (m3) 11.3 (0.32)
Capacity (Heaped), cu.ft (m3) 13.8 (0.39)
Weight, lbs (kg) 328 (149)

Loader Dimensions
Maximum lift height to pivot pin, in (mm) 94.5 (2400)
Maximum lift height under level bucket, in (mm) 86.2 (2190)
Clearance with bucket dumped, in (mm) 70.0 (1780)
Reach at maximum height, in (mm) 22.3 (567)
Maximum dump angle, degrees 45
Reach with bucket on ground, in (mm) 61.5 (1560)
Bucket rollback angle, degrees 46
Digging depth, in (mm) 7.0 (177)
Overall height in carrying position, in (mm) 49.5 (1260)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 1301 (590)
Lift capacity to maximum height at 19.5" (0.5m) forward of pivot pin, lbs (kg) 946 (429)
Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) 1594 (723)
Lift capacity to 59" (1.5m) height at 19.5" (0.5m) forward of pivot pin, lbs (kg) 1241 (563)
Breakout force at pivot pin, lbs (kg) 2343 (1065)
Breakout force at 19.5" (0.5m) forward of pivot pin, lbs (kg) 1748 (795)
Rollback force at maximum height, lbs (kg) 2258 (1026)

Cycle Times
Raise to full height 3.5 sec.
Lowering time self level valve 3.1 sec.
Bucket rollback time 3.0 sec.
Bucket dumping time 1.7 sec
