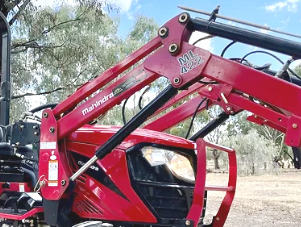

Mahindra ML422 Loader
The
Mahindra ML422 loader fits Mahindra eMax 22HST, eMax 25HST tractors. The loader
has double acting bucket and lift hydraulic cylinders. The Mahindra ML422
front-end loader has a max lift height of 75.7" (1920 mm) at pin and bucket dump
clearance of 52" (1320 mm). The lift capacity is 1455 lbs (660 kg) to max height
at pin, and boom breakout force is 2250 lbs (1023 kg).
The rated cycle times are 3.1 seconds raising to maximum height, and 2.5 seconds maximum bucket dumping. The Mahindra ML422 loader is equipped with the following buckets: a 50" (1270 mm) standard material bucket with a heaped capacity of 0.19 m3 (6.5 cu.ft), and 55" (1395 mm) rock bucket with 18 tines.
| Compatible Tractors |
Tractor Models ............. Mahindra eMax 22HST, eMax 25HST
Front Tire Sizes ............. 20x8.00-10
Rear Tire Sizes ............. 27x12.50-15
Hydraulic Pump Flow, gpm (lpm) ............. 4.5 (17.0)
| Loader |
Loader Model ............. Mahindra ML422
Quick Attach ............. Pin-On
Operating Weight, lbs (kg) ............. 655 (295)
| Standard Materials Bucket |
Overall Width, in (mm) ............. 50 (1270)
Overall Height, in (mm) ............. 18.1 (460)
Overall Depth, in (mm) ............. 19.3 (490)
Struck Capacity, ft3 (m3) ............. 5.3 (0.15)
Heaped Capacity, ft3 (m3) ............. 6.5 (0.19)
Weight, lbs (kg) ............. 210 (95)
| Rock Bucket |
Overall Width, in (mm) ............. 55 (1395)
Overall Depth, in (mm) ............. 43 (1090)
Overall Height, in (mm) ............. 22 (560)
Tine Spacing, in (mm) ............. 3 (76)
Tine Diameter, in (mm) ............. 1.13 (28.5)
Number of Tines ............. 18
Weight, lbs (kg) ............. 300 (136)
| Loader Dimensions |
Maximum Lift Height, Measured at Pivot Pin, in (mm) ............. 75.7 (1920)
Clearance with Attachment Dumped, in (mm) ............. 52 (1320)
Reach at Maximum Height, in (mm) ............. 17.8 (450)
Maximum Dump Angle, deg ............. 55
Digging Depth, in (mm) ............. 4.1 (103)
Maximum Rollback Angle, deg ............. 31
| Operating Specifications |
Lift Capacity to Maximum Height At Pivot Pin, lbs (kg) ............. 1455 (660)
Breakout Force At Pivot Pin, lbs (kg) ............. 2250 (1023)
| Cycle Times |
Raising Time (Ground Level to Full Height) ............. 3.1 sec
Lowering Time (Full Height to Ground Level) ............. 2.4 sec
Bucket Dumping Time (Full Rollback to Full Dump) ............. 2.5 sec
Bucket Rollback Time (Full Dump to Full Rollback) ............. 2.3 sec
