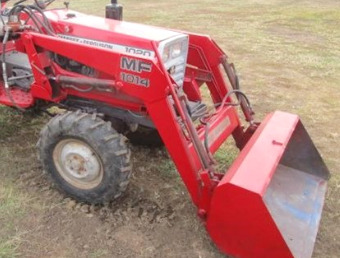

Massey Ferguson 1014 Loader

The Massey Ferguson 1014 loader is available for MF 1010, 1020 tractor. The Massey Ferguson 1014 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 75.5" (1910 mm) at pin and clearance with bucket dumped is 54.5" (1380 mm).

The lifting capacity is 500 lbs (226 kg) at maximum height (bucket pin), and breakout force is 780 lbs (353 kg) with bucket on ground. The raising time is 3.5 sec from ground line to max height, and bucket dumping time is 3.8 sec. Compatible buckets for the MF 1014 front-end loader: a 48" (1220 mm) standard material bucket with a heaped capacity of 0.20 m3 (7.02 cu.ft).

Compatible Tractors
Tractor model MF 1010, 1020
Front tires 20.5x8.00-10
Rear tires 29x12.00-15
Pump capacity, gpm (lpm) 3.5 (13.2)

Standard Material Bucket
Width, in (mm) 48 (1220)
Struck capacity, cu.ft (m3) 5,67 (0,16)
Heaped capacity, cu.ft (m3) 7,02 (0,20)

Loader Dimensions
Maximum lift height at Pivot Pin, in (mm) 75.5 (1910)
Clearance at full height, bucket dumped, in (mm) 54.5 (1380)
Reach at maximum height, in (mm) 22 (550)
Reach at ground, bucket level, in (mm) 31 (780)
Bucket dump angle, degrees 45
Bucket rollback angle, degrees 6

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 500 (226)
Breakout Force at Pivot Pin, lbs (kg) 780 (353)

Cycle Times
Loader Raise, sec 3,5
Loader Lower, sec 3,8
Bucket Dump, sec 3,8
Bucket Rollback, sec 2,9
