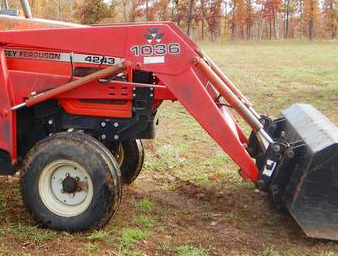

Massey Ferguson 1036 Loader

The MF 1036 front end loader is designed for Massey Ferguson 4233, 4235 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Massey Ferguson 1036 front end loader has a lift capacity (at bucket pin) of 3755 lbs (1703 kg) to a max height of 133" (3370 mm) and breakout force (bucket on ground) of 6900 lbs (3129 kg). The clearance with a bucket dumped is 109" (2760 mm) at a maximum dump angle of 37 degrees.

The estimated cycle times are 4.6 seconds lifting to maximum height, and 3.4 seconds maximum bucket dumping. The MF 1036 loader is compatible with the following buckets: a 72" (1830 mm) standard material bucket with a heaped capacity of 0.31 m3 (10.7 cu.ft), or 72" (1830 mm) high volume bucket with a heaped capacity of 1.43 m3 (15.1 cu.ft).

Compatible Tractors
Tractor Models MF 4233, 4235, 261
Front Tires 7,5L-15
Rear Tires 16,9-30
Hydraulic System Flow, gpm (lpm) 17.4 (65.9)

Standard Material Bucket
Width, in (mm) 72 (1830)
Heaped Capacity, cu.ft (m3) 10.7 (0.31)
Weight, lb (kg) 223 (101)

High Volume Bucket
Width, in (mm) 72 (1830)
Heaped Capacity, cu.ft (m3) 15.1 (0.43)
Weight, lb (kg) 348 (158)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 133 (3370)
Clearance, bucket dumped, in (mm) 109 (2760)
Clearance, level bucket, in (mm) 112.5 (2850)
Reach at maximum lift height, bucket dump at 45 deg, in (mm) 16.5 (410)
Reach with bucket on ground level, in (mm) 80 (2030)
Maximum dump angle, loader fully raised, degrees 37
Maximum rollback angle, bucket at ground, degrees 27

Operating Data
Lift Capacity to maximum height at bucket pivot pin, lbs (kg) 3755 (1703)
Lift Capacity to 1500 mm height at bucket pivot pin, lbs (kg) 5570 (2526)
Boom Breakout force at pivot pin (bucket at ground), lbs (kg) 6900 (3129)

Cycle Times
Loader Raise, sec 4,6
Loader Lower, sec 3,1
Bucket Dump, sec 3,4
Bucket Rollback, sec 2,5
