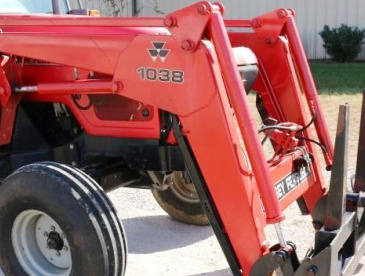

Massey Ferguson 1038 Loader

The Massey Ferguson 1038 loader fits MF 4255 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Massey Ferguson 1038 front-end loader has a max lift height of 137 in (3470 mm) at pin and bucket dump clearance of 110 in (2790 mm). The lift capacity is 5020 lbs (2277 kg) to max height at pin, and boom breakout force is 6230 lbs (2825 kg).

The rated cycle times are 4.6 seconds raising to maximum height, and 3.3 seconds maximum bucket dumping. The MF 1038 loader is equipped with the following buckets: a 84" (2130 mm) standard material bucket with a heaped capacity of 0.56 m3 (19.3 cu.ft).

Compatible Tractors
Tractor Models MF 4255
Front Tires 7,5L-15
Rear Tires 16,9-30
Hydraulic System Flow, gpm (lpm) 17.4 (65.9)

Standard Material Bucket
Width, in (mm) 84 (2130)
Heaped Capacity, cu.ft (m3) 19.3 (0.56)
Weight, lb (kg) 26.5 (0.76)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 137 (3470)
Clearance, bucket dumped, in (mm) 110 (2790)
Clearance, level bucket, in (mm) 128 (3250)
Reach at maximum lift height, bucket dump at 45 deg, in (mm) 33 (830)
Reach with bucket on ground level, in (mm) 84 (2130)
Maximum dump angle, loader fully raised, degrees 40
Maximum rollback angle, bucket at ground, degrees 22

Operating Data
Lift Capacity to maximum height at bucket pivot pin, lbs (kg) 5020 (2277)
Lift Capacity to 1500 mm height at bucket pivot pin, lbs (kg) 5480 (2485)
Boom Breakout force at pivot pin (bucket at ground), lbs (kg) 6230 (2825)

Cycle Times
Loader Raise, sec 4,6
Loader Lower, sec 3,4
Bucket Dump, sec 3,3
Bucket Rollback, sec 2,5
