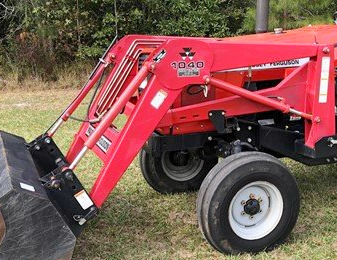

Massey Ferguson 1040 Loader

The Massey Ferguson 1040 loader is designed for MF 1445, 1455 tractors. The loader has double acting lifting and bucket hydraulic cylinders. The loader has a lifting capacity (at pivot pin) of 3107 lbs (1410 kg) to maximum height of 110" (2790 mm) and breakout force of 4560 lbs (2070 kg).

The bucket dump clearance is 86" (2180 mm) at max dump angle of 42 degrees. The estimated cycle times are 7.3 seconds raising to full height, and 4.1 seconds full bucket dumping.

The Massey Ferguson 1040 front end loader can be equipped with the following buckets: a 72" (1830 mm) standard material bucket with a rated capacity of 10.7 cu.ft (0.31 cu.m), 72" (1830 mm) high volume bucket with a rated capacity of 15.1 cu.ft (0.43 cu.m), and 72" (1830 mm) heavy-duty material bucket with a rated capacity of 10.5 cu.ft (0.30 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 1445, 1455
Front Tires 12.0x16
Rear Tires 13.6x28
Hydraulic System Flow, gpm (lpm) 7.5-11.5 (28.0-43.0)

Standard Material Bucket
Bucket Width 72 (1820)
Capacity, ft3 (m3) 10.7 (0.31)
Weight, lb (kg) 223 (101)

High Capacity Bucket
Bucket Width 72 (1820)
Capacity, ft3 (m3) 15.1 (0.43)
Weight, lb (kg) 348 (158)

Heavy-Duty Material Bucket
Bucket Width 72 (1820)
Capacity, ft3 (m3) 10.7 (0.31)
Weight, lb (kg) 283 (129)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 110.0 (2790)
Clearance with Bucket Dumped, in (mm) 86.0 (2180)
Clearance with Level Bucket, in (mm) 102.0 (2590)
Reach at Maximum Lift Height, in (mm) 30.0 (760)
Maximum Dump Angle, degrees 42
Reach with Bucket on Ground, in (mm) 71.0 (1800)
Maximum Rollback Angle, degrees 14

Operating Data
Lift Capacity to Max. Height at Pivot Pins, lbs (kg) 3107 (1410)
Lift Capacity to 19.7" (500 mm) Height at Pivot Pins, lbs (kg) 1950 (885)
Max. Breakout force at Pivot Pins, lbs (kg) 4560 (2070)
Max. Breakout force at 19.7" (500 mm) ahead Pivot Pins, lbs (kg) 3000 (1360)

Cycle Times
Raising time, second 7,3
Bucket dump time, second 4,1
Lowering time, second 4,7
Rollback time, second 2,5
