Massey Ferguson 1070 Loader
The

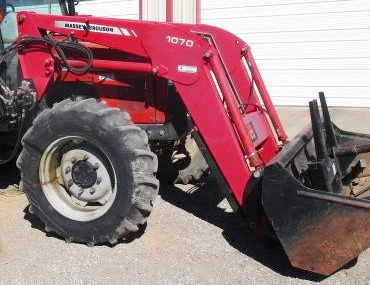

Massey Ferguson 1070 front end loader fits MF 4345, 4355 tractors. The loader
is equipped with double acting bucket and lift hydraulic cylinders. The loader
has a lifting capacity (at pin) of 4200 lbs (1905 kg) to full height of 154"
(3910 mm) and bucket's breakout force of 5254 lbs (2385 kg).
The bucket dump clearance is 121" (3070 mm) at maximum dump angle of 55
degrees. The time to raise the boom is 5.9 seconds from ground level to
full height, and bucket dump time is 6.2 sec.
The Massey Ferguson 1070 loader is compatible with the following
buckets: a 84" (2100 mm) standard material bucket with a rated capacity
of 19.7 cu.ft (0.56 cu.m), 84" (2100 mm) snow bucket with a rated
capacity of 33 cu.ft (0.94 cu.m), and 84" (2100 mm) heavy-duty material
bucket with a rated capacity of 19.7 cu.ft (0.56 cu.m).
Tractor Models |
Massey Ferguson 4345, 4355 |
Front Tires |
13.6R24 |
Rear Tires |
16.9R34 |
Hydraulic System Flow, gpm (lpm) |
10.0 (38.0) |
Bucket Width |
84 (2100) |
Capacity, ft3 (m3) |
19.7 (0.56) |
Weight, lb (kg) |
462 (210) |
Bucket Width |
84 (2100) |
Capacity, ft3 (m3) |
33.0 (0.94) |
Weight, lb (kg) |
394 (180) |
Heavy-Duty Material Bucket |
Bucket Width |
84 (2100) |
Capacity, ft3 (m3) |
19.7 (0.56) |
Weight, lb (kg) |
585 (266) |
Maximum Lift Height to Pivot Pin, in (mm) |
154.0 (3910) |
Clearance with Bucket Dumped, in (mm) |
121.0 (3070) |
Clearance with Level Bucket, in (mm) |
144.0 (3650) |
Reach at Maximum Lift Height, in (mm) |
45.0 (1140) |
Maximum Dump Angle, degrees |
55 |
Reach with Bucket on Ground, in (mm) |
96.0 (2430) |
Maximum Rollback Angle, degrees |
48 |
Lift Capacity to Max. Height at Pivot Pins, lbs (kg) |
4200 (1905) |
Lift Capacity to 19.7" (500 mm) Height at Pivot Pins, lbs (kg) |
3100 (1405) |
Lift capacity to 59" (1500 mm) Height at Pivot Pins, lbs (kg) |
4970 (2255) |
Max. Breakout force at Pivot Pins, lbs (kg) |
5254 (2385) |
Max. Breakout force at 19.7" (500 mm) ahead Pivot Pins, lbs (kg) |
3900 (1770) |
Raising time, second |
5,9 |
Bucket dump time, second |
6,2 |
Lowering time, second |
4,4 |
Rollback time, second |
4,6 |
