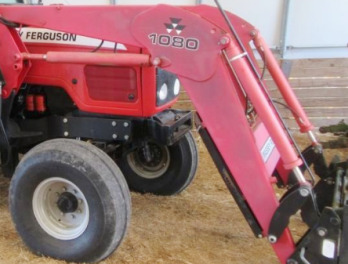

Massey Ferguson 1080 Loader

The Massey Ferguson 1080 loader is used for MF 4360, 4370 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The MF 1080 front end loader has a lifting capacity (at pivot pin) of 6400 lbs (2903 kg) to maximum height of 171" (4340 mm), and lifting capacity (at 800 mm from pivot pin) of 4475 lbs (2035 kg).

The bucket dump clearance is 135" (3420 mm) at maximum dump angle of 53 degrees. The rated cycle times are 6.2 seconds lifting to maximum height, and 5.5 seconds to full bucket dump. The Massey Ferguson 1080 loader is compatible with a 96" (2450 mm) standard and heavy-duty material buckets with heaped capacity of 0.95 m3 (33.2 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 4360, 4370
Front Tires 420/70R24
Rear Tires 18.4R38
Hydraulic System Flow, gpm (lpm) 17.4 (65.9)

Standard Material Bucket
Width, in (mm) 96 (2450)
Heaped Capacity, cu.ft (m3) 30.8 (0.88)
Weight, lb (kg) 650 (295)

Heavy Duty Material Bucket
Width, in (mm) 96 (2450)
Heaped Capacity, cu.ft (m3) 30.8 (0.88)
Weight, lb (kg) 780 (355)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 171 (4340)
Clearance, bucket dumped, in (mm) 135 (3420)
Clearance, level bucket, in (mm) 159 (4030)
Reach at maximum lift height, bucket dump at 45 deg, in (mm) 39.6 (1000)
Reach with bucket on ground level, in (mm) 98 (2480)
Maximum dump angle, loader fully raised, degrees 53
Maximum rollback angle, bucket at ground, degrees 39

Operating Data
Lift Capacity to maximum height at bucket pivot pin, lbs (kg) 6400 (2903)
Lift Capacity to maximum height at 800 mm forward of bucket pivot pin, lbs (kg) 4475 (2035)

Cycle Times
Loader Raise, sec 6,2
Loader Lower, sec 6,7
Bucket Dump, sec 5,5
Bucket Rollback, sec 4,2
