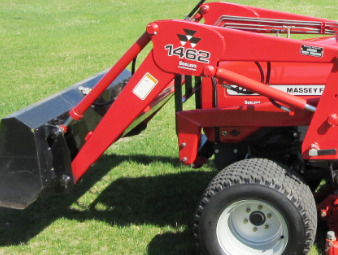

Massey Ferguson 1462 Loader

The Massey Ferguson 1462 loader is compatible with MF 1417, 1423 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The MF 1462 loader has a lift capacity (at pivot pin) of 800 lbs (362 kg) to a maximum height of 74" (1870 mm) and breakout force of 965 lbs (437 kg) with bucket on ground.

A full dump clearance with a 51-degree maximum dump angle is 53 (1340 mm). The rated cycle times are 6.1 seconds raising to maximum height, and 4.8 seconds full bucket dumping. The MF 1462 loader is equipped with a 48" (1220 mm) standard material bucket with a rated capacity of 0.20 m3 (7.02 cu.ft).

Compatible Tractors
Tractor model Massey Ferguson 1417, 1423
Front tires 6.00x14
Rear tires 12.0-16.5
Pump capacity, gpm (lpm) 5.4 (20.3)

Standard Material Bucket
Width, in (mm) 48 (1220)
Struck capacity, cu.ft (m3) 5,67 (0,16)
Heaped capacity, cu.ft (m3) 7,02 (0,20)

Loader Dimensions
Maximum lift height at Pivot Pin, in (mm) 74 (1870)
Clearance at full height, bucket dumped, in (mm) 53 (1340)
Clearance with level bucket, in (mm) 68 (1720)
Reach at maximum height, in (mm) 22 (550)
Reach at ground, bucket level, in (mm) 51 (1290)
Bucket dump angle, degrees 51
Bucket rollback angle, degrees 23

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 800 (362)
Breakout Force at Pivot Pin, lbs (kg) 965 (437)

Cycle Times
Loader Raise, sec 6,1
Loader Lower, sec 4,1
Bucket Dump, sec 4,8
Bucket Rollback, sec 4,3
