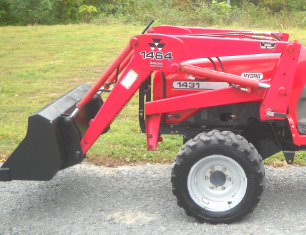

Massey Ferguson 1464 Loader

The Massey Ferguson 1464 loader is fitted to Massey Ferguson 1428, 1431 tractors. The loader is equipped with a double acting hydraulic bucket and lift cylinders.

The loader’s max lift height is 90" (2280 mm) at pin and clearance with bucket dumped is 71" (1800 mm). The lift capacity is 960 lbs (435 kg) to max height at pin, and bucket's breakout force is 1145 lbs (519 kg). The time to raise the boom is 5.5 sec from ground level to max height, and bucket dumping time is 2.2 seconds.

The Massey Ferguson 1464 loader is equipped with the following buckets: a 54" (1360 mm) standard material bucket with a rated capacity of 12.6 cu.ft (0.36 cu.m), 60" (1520 mm) standard material bucket with a rated capacity of 14 cu.ft (0.40 cu.m), and 60" (1520 mm) high volume bucket with a rated capacity of 22.7 cu.ft (0.65 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 1428, 1431
Front Tires 12.5/80-18
Rear Tires 11,2-24
Hydraulic System Flow, gpm (lpm) 7.4-7.7 (28.0-29.0)
Hydraulic Pressure, psi (bar) 2135 (147)

54" Standard Material Bucket
Bucket Width, in (mm) 54 (1360)
Capacity, ft3 (m3) 12.6 (0.36)
Weight, lb (kg) 185 (84)

60" Standard Material Bucket
Bucket Width, in (mm) 60 (1520)
Capacity, ft3 (m3) 14.0 (0.40)
Weight, lb (kg) 198 (90)

60" High Capacity Bucket
Bucket Width, in (mm) 60 (1520)
Capacity, ft3 (m3) 22.7 (0.65)
Weight, lb (kg) 265 (120)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 90.0 (2280)
Clearance with Bucket Dumped, in (mm) 71.0 (1800)
Clearance with Level Bucket, in (mm) 84.0 (2130)
Reach at Maximum Lift Height, in (mm) 16.0 (400)
Maximum Dump Angle, degrees 44
Reach with Bucket on Ground, in (mm) 52 (1320)
Maximum Rollback Angle, degrees 17

Operating Data
Lift Capacity to Max. Height at Pivot Pins, lbs (kg) 960 (435)
Max. Breakout force at Pivot Pins, lbs (kg) 1145 (519)

Cycle Times
Raising time, second 5,5
Bucket dump time, second 2,2
Lowering time, second 3,2
Rollback time, second 2,2
