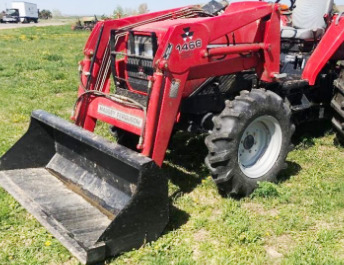

Massey Ferguson 1466 Loader

The Massey Ferguson 1466 loader is designed for MF 1429, 1433 tractors. The loader is equipped with double acting lift and bucket hydraulic cylinders. The loader’s maximum lift height is 98" (2480 mm) at pin, and bucket dump clearance is 80" (2030 mm).

The lifting capacity is 1200 lbs (544 kg) at max height (bucket pin), and breakout force is 1840 lbs (834 kg). The estimated cycle times are 5.3 seconds raising to full height, and 3.1 seconds to full bucket dump.

The Massey Ferguson 1466 front end loader can be equipped with the following buckets: a 54" (1360 mm) standard material bucket with a rated capacity of 6.7 cu.ft (0.20 cu.m), 60" (1520 mm) standard material bucket with a rated capacity of 14 cu.ft (0.40 cu.m), and 60" (1520 mm) high volume bucket with a rated capacity of 23.6 cu.ft (0.67 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 1429, 1433
Front Tires 8.0x16
Rear Tires 13.6x24
Hydraulic System Flow, gpm (lpm) 7.4-7.7 (28.0-29.0)
Hydraulic Pressure, psi (bar) 2130 (147)

54" Standard Material Bucket
Bucket Width, in (mm) 54 (1360)
Capacity, ft3 (m3) 6.7 (0.20)
Weight, lb (kg) 165 (75)

60" Standard Material Bucket
Bucket Width, in (mm) 60 (1520)
Capacity, ft3 (m3) 14.0 (0.40)
Weight, lb (kg) 198 (90)

60" High Capacity Bucket
Bucket Width, in (mm) 60 (1520)
Capacity, ft3 (m3) 23.6 (0.67)
Weight, lb (kg) 287 (130)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 98.0 (2480)
Clearance with Bucket Dumped, in (mm) 80.0 (2030)
Clearance with Level Bucket, in (mm) 71.0 (1800)
Reach at Maximum Lift Height, in (mm) 23.0 (580)
Maximum Dump Angle, degrees 32
Reach with Bucket on Ground, in (mm) 56.0 (1420)
Maximum Rollback Angle, degrees 12

Operating Data
Lift Capacity to Max. Height at Pivot Pins, lbs (kg) 1200 (544)
Max. Breakout force at Pivot Pins, lbs (kg) 1840 (834)

Cycle Times
Raising time, second 5,3
Bucket dump time, second 3,1
Lowering time, second 3,2
Rollback time, second 3,5
