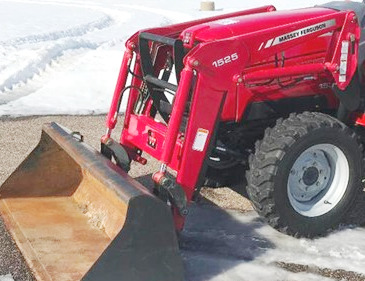

Massey Ferguson 1525 Loader
The
Massey Ferguson 1525 non-self leveling loader was designed for MF 1533, 1540
tractors. The loader is equipped with double acting lift and bucket hydraulic
cylinders.
The Massey Ferguson 1525 front end loader has a lift capacity (at bucket
pin) of 1900 lbs (861 kg) to max height of 102 in (2590 mm), and
breakout force of 1841 lbs (835 kg). The max bucket dump angle is 47
degrees, and maximum rollback angle is 30 degrees.
Available buckets for the Massey Ferguson 1525 loader: 60" (1520 mm)
standard material bucket with a rated capacity of 10.6 cu.ft (0.30
cu.m), and 66" (1670 mm) standard material bucket with a rated capacity
of 11.9 cu.ft (0.34 cu.m).
| Tractor Models |
Massey Ferguson 1540 |
| Front Tires |
8,0-16 |
| Rear Tires |
13,6-24 |
| Hydraulic System Flow, gpm (lpm) |
9.1 (34.4) |
| Loader Model |
MF 1525 NSL |
| Leveling Configuration |
Non-self leveling |
| Tool Attachment |
Pin Type |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1530) |
| Struck Capacity, cu. ft (m3) |
8.5 (0.24) |
| Heaped Capacity, cu. ft (m3) |
10.6 (0.30) |
| 66" Standard Material Bucket |
| Width, in (mm) |
66 (1670) |
| Struck Capacity, cu. ft (m3) |
10.5 (0.30) |
| Heaped Capacity, cu. ft (m3) |
11.9 (0.34) |
| Maximum Lift Height to Pivot Pin, in (mm) |
102 (2590) |
| Maximum Dump Angle, degrees |
47 |
| Maximum Rollback Angle, degrees |
30 |
| Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) |
1900 (861) |
| Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) |
1314 (596) |
| Breakout Force at Pivot Pin, lbs (kg) |
1841 (835) |
