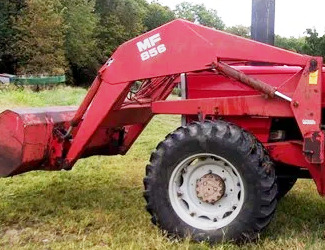

Massey Ferguson 856 Loader

The Massey Ferguson 856 loader is used for MF 3080, 3650 tractor. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The MF 856 front end loader has a lifting capacity of 4100 lbs (1859 kg) at pivot pin to a maximum height of 151" (3830 mm), and bucket's breakout force of 5300 lbs (2404 kg).

The bucket dump clearance is 120" (3040 mm) at maximum dump angle of 43 degrees. The rated cycle times are 8.5 seconds lifting to maximum height, and 7.5 seconds to full bucket dump. The MF 856 loader is compatible with a 96" (2450 mm) standard material bucket with a rated capacity of 0.88 m3 (30.8 cu.ft).

Compatible Tractors
Tractor model MF 3080, 3650
Front tires 13.6R28
Rear tires 16.9R38
Pump capacity, gpm (lpm) 13.2 (50.1)
Hydraulic pressure, psi (bar) 2610 (180)

Standard Material Bucket
Width, in (mm) 96 (2450)
Heaped capacity, cu.ft (m3) 30.8 (0.88)
Weight, lb (kg) 650 (295)

Loader Dimensions
Maximum lift height at Pivot Pin, in (mm) 151 (3830)
Clearance at full height, bucket dumped, in (mm) 120 (3040)
Reach at maximum height, in (mm) 40 (1010)
Reach at ground, bucket level, in (mm) 97 (2460)
Bucket dump angle, degrees 43
Bucket rollback angle, degrees 21

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 4100 (1859)
Breakout Force at Pivot Pin, lbs (kg) 5300 (2404)

Cycle Times
Loader Raise, sec 8,5
Loader Lower, sec 6,5
Bucket Dump, sec 7,5
Bucket Rollback, sec 5,1
