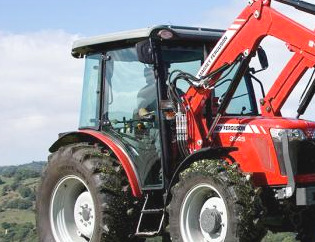

Massey Ferguson 905 Loader
The
MF 905 NSL loader is available for Massey Ferguson 3600 Series tractors. The
Massey Ferguson 905 loader has double acting hydraulic lifting and bucket
cylinders. The loader’s maximum lift height is 118.6" (3000 mm) at pivot pin.
The lifting capacity is 3102 lbs (1410 kg) at maximum height (bucket pin), and
breakout force is 5016 lbs (2280 kg).
Compatible buckets for the MF 905 front-end loader: 63" (1600 mm) and
73" (1850 mm) standard material buckets with rated capacities of 0.65 m3
(22.8 cu.ft) and 0.72 m3 (25.2 cu.ft), or 51" (1300 mm) and 71" (1800
mm) light material bucket with rated capacities of 0.51 m3 (17.8 cu.ft)
and 0.71 m3 (24.8 cu.ft).
| Tractor Models |
Massey Ferguson 3600 Series |
| Front Tires |
11.2R24 |
| Rear Tires |
16.9R30 |
| Hydraulic Pressure, psi (bar) |
2750 (190) |
| Loader Model |
MF 905 NSL |
| Leveling Configuration |
Non self leveling |
| Weight, lb (kg) |
682 (310) |
| 53" Standard Material Bucket |
| Width, in (mm) |
53 (1350) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
18.9 (0.54) |
| Weight, lb (kg) |
323 (147) |
| 63" Standard Material Bucket |
| Width, in (mm) |
63 (1600) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
22.8 (0.65) |
| Weight, lb (kg) |
365 (166) |
| 73" Standard Material Bucket |
| Width, in (mm) |
73 (1850) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
| Weight, lb (kg) |
450 (205) |
| 51" Light Material Bucket |
| Width, in (mm) |
51 (1300) |
| Depth, in (mm) |
31.5 (800) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
17.8 (0.51) |
| Weight, lb (kg) |
300 (136) |
| 71" Light Material Bucket |
| Width, in (mm) |
71 (1800) |
| Depth, in (mm) |
31.5 (800) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
24.8 (0.71) |
| Weight, lb (kg) |
376 (171) |
| Maximum lift height at pivot pin, in (mm) |
118.6 (3000) |
| Maximum lift height under level bucket, in (mm) |
108.7 (2750) |
| Maximum dump angle at maximum height, degrees |
49 |
| Maximum rollback angle at ground level, degrees |
45 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
3102 (1410) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
1738 (790) |
| Lift capacity to 59" (1.5m) height at 31.5" (0.8m) from pivot pin, lb (kg) |
2486 (1130) |
| Breakout force at pivot pin, lb (kg) |
5016 (2280) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
3124 (1420) |
| Rollback force at ground level, lb (kg) |
4114 (1870) |
