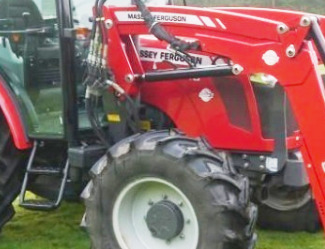

Massey Ferguson 906 Loader

The MF 906 non self leveling loader is available for Massey Ferguson 3600 Series tractors. The MF 906 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 130.4" (3300 mm) at bucket pin. The lifting capacity is 3454 lbs (1570 kg) at maximum height (bucket pin), and breakout force is 5500 lbs (2500 kg).

Compatible buckets for the Massey Ferguson 906 front-end loader: 73" (1850 mm) and 83" (2100 mm) standard material buckets with rated capacities of 0.72 m3 (25.2 cu.ft) and 0.82 m3 (28.7 cu.ft), 79" (2000 mm) light material bucket with a rated capacity of 1.16 m3 (40.6 cu.ft), or 73" (1850 mm) heavy-duty material bucket with a rated capacity of 0.72 m3 (25.2 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 3600 Series
Front Tires 11.2R24
Rear Tires 16.9R30
Hydraulic Pressure, psi (bar) 2750 (190)

Loader
Loader Model MF 906 NSL
Leveling Configuration Non self leveling
Weight, lb (kg) 737 (335)

63" Standard Material Bucket
Width, in (mm) 63 (1600)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 22.8 (0.65)
Weight, lb (kg) 365 (166)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 450 (205)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

73" Heavy-Duty Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 517 (235)

79" High Volume Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 40.6 (1.16)
Weight, lb (kg) 600 (273)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 130.4 (3300)
Maximum lift height under level bucket, in (mm) 120.6 (3050)
Maximum dump angle at maximum height, degrees 48
Maximum rollback angle at ground level, degrees 46

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3454 (1570)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 1980 (900)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) from pivot pin, lb (kg) 2882 (1310)
Breakout force at pivot pin, lb (kg) 5500 (2500)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3498 (1590)
Rollback force at ground level, lb (kg) 4268 (1940)
