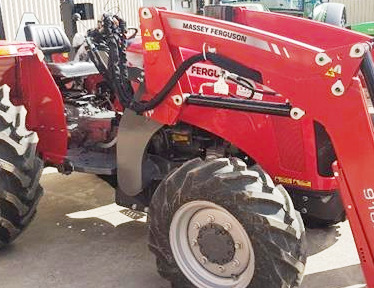

Massey Ferguson 915 Loader
The
Massey Ferguson 915 mechanical self leveling front-end loader is compatible with
Massey Ferguson 3600 Series tractors. The loader is equipped with double acting
bucket and lifting hydraulic cylinders.
The loader has a max lift height of 118.6 inches (3000 mm) at pin and
maximum dump angle of 49 degrees at full height. The lift capacity is
rated at 2508 lbs (1140 kg) to maximum height, and breakout force
(bucket on ground) is 4136 lbs (1880 kg).
Compatible buckets for the Massey Ferguson 915 loader: 73" (1850 mm)
standard material and heavy-duty material buckets with a heaped capacity
of 25.2 cu.ft (0.72 m3), 83" (2100 mm) standard material and heavy-duty
material buckets with a heaped capacity of 28.7 cu.ft (0.82 m3), or 87"
(2200 mm) high volume bucket with a heaped capacity of 44.8 cu.ft (1.28
m3).
Tractor Models |
Massey Ferguson 3600 Series |
Front Tires |
11.2R24 |
Rear Tires |
16.9R30 |
Hydraulic Pressure, psi (bar) |
2750 (190) |
Loader Model |
MF 915 MSL |
Leveling Configuration |
Mechanical self leveling |
Weight, lb (kg) |
792 (360) |
73" Standard Material Bucket |
Width, in (mm) |
73 (1850) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
Weight, lb (kg) |
450 (205) |
83" Standard Material Bucket |
Width, in (mm) |
83 (2100) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
Weight, lb (kg) |
554 (252) |
73" Heavy-Duty Material Bucket |
Width, in (mm) |
73 (1850) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
Weight, lb (kg) |
517 (235) |
83" Heavy-Duty Material Bucket |
Width, in (mm) |
83 (2100) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
Weight, lb (kg) |
627 (285) |
Width, in (mm) |
87 (2200) |
Depth, in (mm) |
41 (1040) |
Height, in (mm) |
33.5 (850) |
Heaped Capacity, cu.ft (m3) |
44.8 (1.28) |
Weight, lb (kg) |
647 (294) |
Maximum lift height at pivot pin, in (mm) |
118.6 (3000) |
Maximum lift height under level bucket, in (mm) |
108.7 (2750) |
Maximum dump angle at maximum height, degrees |
49 |
Maximum rollback angle at ground level, degrees |
45 |
Lift capacity to maximum height at pivot pin, lb (kg) |
2508 (1140) |
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
2486 (1130) |
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) from pivot pin, lb (kg) |
2860 (1300) |
Breakout force at pivot pin, lb (kg) |
4136 (1880) |
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
3300 (1500) |
Rollback force at ground level, lb (kg) |
3322 (1510) |
