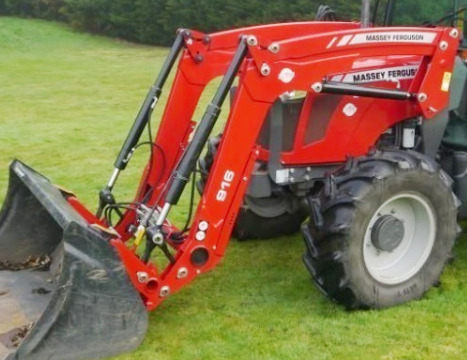

Massey Ferguson 916 Loader
The
Massey Ferguson 916 mechanical self leveling loader is designed for Massey
Ferguson 3600 series tractors. The loader is equipped with double acting
hydraulic boom and bucket cylinders. The loader has a lifting capacity (at
bucket pin) of 2332 lbs (1060 kg) to a max height of 130.4" (3300 mm), and
bucket's breakout force of 3850 lbs (1750 kg). A full dump angle at maximum
height is 48 degrees.
The Massey Ferguson 916 loader is compatible with the following buckets:
73" (1850 mm) standard material bucket with heaped capacity of 25.2
cu.ft (0.72 cu.m), 83" (2100 mm) standard material bucket with heaped
capacity of 28.7 cu.ft (0.82 cu.m), 73" (1850 mm) heavy-duty material
bucket with heaped capacity of 25.2 cu.ft (0.72 cu.m), 83" (2100 mm)
heavy-duty material bucket with heaped capacity of 28.7 cu.ft (0.82
cu.m), 79" (2000 mm) light material bucket with heaped capacity of 39.5
cu.ft (1.13 cu.m), and 87" (2200 mm) light material bucket with heaped
capacity of 43.7 cu.ft (1.25 cu.m).
Tractor Models |
Massey Ferguson 3600 Series |
Front Tires |
11.2R24 |
Rear Tires |
16.9R30 |
Hydraulic Pressure, psi (bar) |
2750 (190) |
Loader Model |
MF 916 MSL |
Leveling Configuration |
Mechanical self leveling |
Weight, lb (kg) |
858 (390) |
73" Standard Material Bucket |
Width, in (mm) |
73 (1850) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
Weight, lb (kg) |
450 (205) |
83" Standard Material Bucket |
Width, in (mm) |
83 (2100) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
Weight, lb (kg) |
554 (252) |
73" Heavy-Duty Material Bucket |
Width, in (mm) |
73 (1850) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
Weight, lb (kg) |
517 (235) |
83" Heavy-Duty Material Bucket |
Width, in (mm) |
83 (2100) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
Weight, lb (kg) |
627 (285) |
79" Light Material Bucket |
Width, in (mm) |
79 (2000) |
Depth, in (mm) |
39.5 (1000) |
Height, in (mm) |
33.5 (850) |
Heaped Capacity, cu.ft (m3) |
39.5 (1.13) |
Weight, lb (kg) |
535 (243) |
87" Light Material Bucket |
Width, in (mm) |
87 (2200) |
Depth, in (mm) |
39.5 (1000) |
Height, in (mm) |
33.5 (850) |
Heaped Capacity, cu.ft (m3) |
43.7 (1.25) |
Weight, lb (kg) |
577 (262) |
Maximum lift height at pivot pin, in (mm) |
130.4 (3300) |
Maximum lift height under level bucket, in (mm) |
120.6 (3050) |
Maximum dump angle at maximum height, degrees |
48 |
Maximum rollback angle at ground level, degrees |
46 |
Lift capacity to maximum height at pivot pin, lb (kg) |
2332 (1060) |
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
2398 (1090) |
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) from pivot pin, lb (kg) |
2684 (1220) |
Breakout force at pivot pin, lb (kg) |
3850 (1750) |
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
3014 (1370) |
Rollback force at ground level, lb (kg) |
4246 (1930) |
