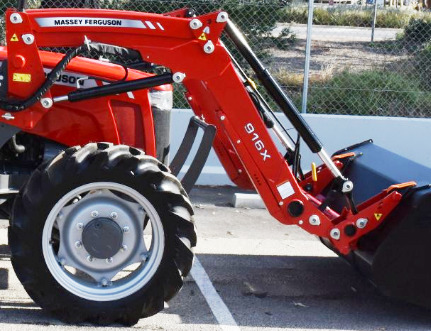

Massey Ferguson 916X Loader

The Massey Ferguson 916X mechanical self leveling loader is designed to fit Massey Ferguson 2600 series tractors. The loader is equipped with double acting hydraulic lifting and bucket cylinders.

The loader has a max lift height of 114.6" (2900 mm) at pin and maximum dump angle of 47 degrees at full height. The lift capacity is 2574 lbs (1170 kg) at max height (pivot pin), and bucket's breakout force is 3990 lbs (1815 kg).

The Massey Ferguson 916X front-end loader is compatible with the following buckets: 63" (1600 mm) and 83" (2100 mm) standard material buckets with heaped capacities of 22.8 cu.ft (0.65 m3) and 28.7 cu.ft (0.82 m3), 79" (2000 mm) high volume bucket with a heaped capacity of 40.6 cu.ft (1.16 m3), 51" (1300) and 71" (1800 mm) light material buckets with heaped capacities of 17.8 cu.ft (0.51 m3) and 24.8 cu.ft (0.71 m3).

Compatible Tractors
Tractor Models Massey Ferguson 2600 Series
Front Tires 10.5/80-18
Rear Tires 12.4x28
Hydraulic Pressure, psi (bar) 2750 (190)

Loader
Loader Model MF 916X MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 2.17 (55.0)
Bucket cylinder diameter, in (mm) 2.57/1.58 (65.0/40.0)
Weight, lb (kg) 748 (340)

63" Standard Material Bucket
Width, in (mm) 63 (1600)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 22.8 (0.65)
Weight, lb (kg) 365 (166)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 450 (205)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

79" High Volume Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 40.6 (1.16)
Weight, lb (kg) 600 (273)


51" Light Material Bucket
Width, in (mm) 51 (1300)
Depth, in (mm) 31.5 (800)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 17.8 (0.51)
Weight, lb (kg) 300 (136)

71" Light Material Bucket
Width, in (mm) 71 (1800)
Depth, in (mm) 31.5 (800)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 24.8 (0.71)
Weight, lb (kg) 376 (171)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 114.6 (2900)
Maximum lift height under level bucket, in (mm) 106.7 (2700)
Maximum dump angle at maximum height, degrees 47
Maximum rollback angle at ground level, degrees 46

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 2574 (1170)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 2112 (960)
Lift capacity to 59" (1.5m) height at 31.5" (0.8m) from pivot pin, lb (kg) 2574 (1170)
Breakout force at pivot pin, lb (kg) 3990 (1815)
Rollback force at ground level, lb (kg) 3080 (1400)
