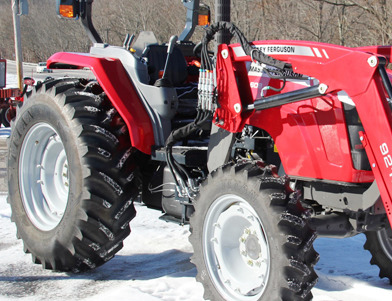

Massey Ferguson 921 Loader
The
Massey Ferguson 921 non self leveling front end loader fits Massey Ferguson 3600
series tractors. The loader hydraulic system includes double-acting bucket and
lifting hydraulic cylinders.
The front end loader has a lift capacity (at pivot pin) of 3806 lbs
(1730 kg) to full height of 126.5 inches (3200 mm) and breakout force of
5016 lbs (2280 kg). The bucket rollback force is 5170 lbs (2350 kg) at
ground level.
Compatible buckets for the Massey Ferguson 921 loader:a 83" (2100 mm)
standard material bucket with a heaped capacity of 28.7 cu.ft (0.82 m3),
73" (1850 mm) heavy-duty material bucket with a heaped capacity of 25.2
cu.ft (0.72 m3), or 79" (2000 mm) high volume bucket with a heaped
capacity of 40.6 cu.ft (1.16 m3).
| Tractor Models |
Massey Ferguson 3600 series |
| Front Tires |
11.2R24 |
| Rear Tires |
16.9R30 |
| Hydraulic Pressure, psi (bar) |
2750 (190) |
| Loader Model |
MF 921 NSL |
| Leveling Configuration |
Non self leveling |
| Lift cylinder diameter, in (mm) |
2.75/1.57 (70/40) |
| Bucket cylinder diameter, in (mm) |
2.95/1.57 (75/40) |
| Weight, lb (kg) |
960 (436) |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
554 (252) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
73 (1850) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
| Weight, lb (kg) |
517 (235) |
| Width, in (mm) |
79 (2000) |
| Depth, in (mm) |
41 (1040) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
40.6 (1.16) |
| Weight, lb (kg) |
600 (273) |
| Maximum lift height at pivot pin, in (mm) |
126.5 (3200) |
| Maximum lift height under level bucket, in (mm) |
114.6 (2900) |
| Maximum dump angle at maximum height, degrees |
64 |
| Maximum rollback angle at ground level, degrees |
41 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
3806 (1730) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
2618 (1190) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
2706 (1230) |
| Breakout force at pivot pin, lb (kg) |
5016 (2280) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
2995 (1360) |
| Rollback force at ground level, lb (kg) |
5170 (2350) |
