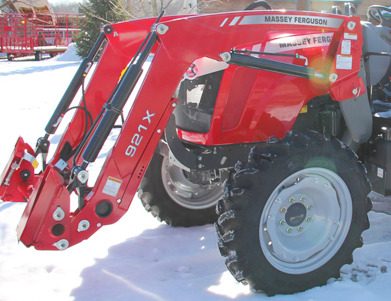

Massey Ferguson 921X Loader

The Massey Ferguson 921X NSL loader is fitted to Massey Ferguson 3600, 4608 tractors. The loader is equipped with a double acting hydraulic bucket and boom cylinders.

The loader has a max lift height of 122.5" (3100 mm) at pin and bucket dump angle at maximum height of 50 degrees. The lift capacity is rated at 3366 lbs (1530 kg) to full height, and boom breakout force is 5195 lbs (2360 kg).

The Massey Ferguson 921X front-end loader is equipped with the following buckets: a 71" (1800 mm) light material bucket with a heaped capacity of 24.8 cu.ft (0.71 m3), 73" (1850 mm) standard and heavy-duty material buckets with heaped capacity of 25.2 cu.ft (0.72 m3), or 79" (2000 mm) light material bucket with a heaped capacity of 39.5 cu.ft (1.13 m3).

Compatible Tractors
Tractor Models Massey Ferguson 3600, 4608
Front Tires 11.2R24
Rear Tires 16.9R30
Hydraulic Pressure, psi (bar) 2750 (190)

Loader
Loader Model MF 921X NSL
Leveling Configuration Non self leveling
Lift cylinder diameter, in (mm) 2.57 (65)
Bucket cylinder diameter, in (mm) 2.57/1.25 (65/32)
Weight, lb (kg) 770 (350)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 450 (205)

73" Heavy-Duty Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 517 (235)


71" Light Material Bucket
Width, in (mm) 71 (1800)
Depth, in (mm) 31.5 (800)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 24.8 (0.71)
Weight, lb (kg) 376 (171)

79" Light Material Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 39.5 (1.13)
Weight, lb (kg) 535 (243)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 122.5 (3100)
Maximum lift height under level bucket, in (mm) 114.6 (2900)
Maximum dump angle at maximum height, degrees 50
Maximum rollback angle at ground level, degrees 42

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3366 (1530)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 1914 (870)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 2665 (1210)
Breakout force at pivot pin, lb (kg) 5195 (2360)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3190 (1450)
Rollback force at ground level, lb (kg) 4136 (1880)
