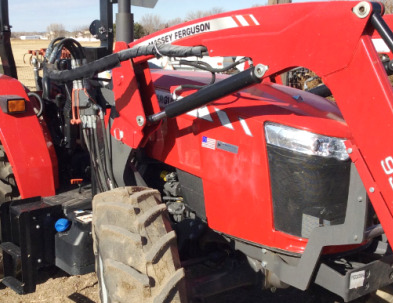

Massey Ferguson 926 Loader

The Massey Ferguson 926 front-end loader fits Massey Ferguson 4608 and 3600 series tractors. The loader has double acting bucket and boom hydraulic cylinders.

The loader has a max lift height of 126.5 in (3200 mm) at bucket pin and lifting capacity of 3278 lbs (1490 kg) at maximum height. The bucket's breakout force is 4005 lbs (1820 kg), and rollback force at ground level is 5082 lbs (2310 kg).

The Massey Ferguson 926 loader is compatible with the following buckets: 83" (2100 mm) standard and heavy-duty material buckets with heaped capacity of 28.7 cu.ft (0.82 m3), 79" (2000 mm) light material bucket with a heaped capacity of 39.5 cu.ft (1.13 m3), or 79" (2000 mm) high volume bucket with a heaped capacity of 40.6 cu.ft (1.16 m3).

Compatible Tractors
Tractor Models Massey Ferguson 3600 Series, 4608
Front Tires 11.2R24
Rear Tires 16.9R30
Hydraulic Pressure, psi (bar) 2750 (190)

Loader
Loader Model MF 926 MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 2.58/1.57 (65/40)
Bucket cylinder diameter, in (mm) 2.95/1.57 (75/40)
Weight, lb (kg) 1110 (505)

Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 627 (285)


High Volume Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 40.6 (1.16)
Weight, lb (kg) 600 (273)

Light Material Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 39.5 (1.13)
Weight, lb (kg) 535 (243)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 126.5 (3200)
Maximum lift height under level bucket, in (mm) 114.6 (2900)
Maximum dump angle at maximum height, degrees 63
Maximum rollback angle at ground level, degrees 41

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3278 (1490)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 2816 (1280)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3015 (1370)
Breakout force at pivot pin, lb (kg) 4005 (1820)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3300 (1500)
Rollback force at ground level, lb (kg) 5082 (2310)
