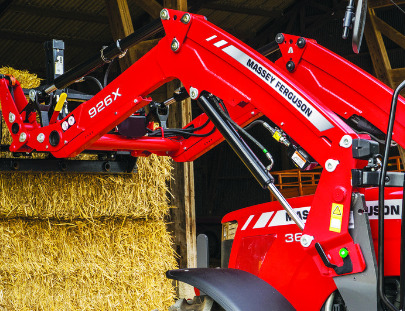

Massey Ferguson 926X Loader
The
Massey Ferguson 926X mechanical self leveling front end loader is fitted to
Massey Ferguson 4608 tractor. The front end loader hydraulic system includes
double-acting hydraulic bucket and boom cylinders.
The loader’s max lift height is 122.5" (3100 mm) at pin, and bucket dump
angle is 50 degrees at full height. The lifting capacity is 2728 lbs
(1240 kg) to maximum lift height at pin, and breakout force is 4290 lbs
(1950 kg).
The Massey Ferguson 926X loader is compatible with 73" (1850 mm) and 83"
(2100 mm) standard material buckets with heaped capacities of 25.2 cu.ft
(0.72 m3) and 28.7 cu.ft (0.82 m3), 73" (1850 mm) heavy-duty material
bucket with a heaped capacity of 25.2 cu.ft (0.72 m3), or 71" (1800 mm)
light material bucket with a heaped capacity of 24.8 cu.ft (0.71 m3).
| Tractor Models |
Massey Ferguson 4608 |
| Front Tires |
10.5/80-18 |
| Rear Tires |
19.5L-24 |
| Hydraulic Pressure, psi (bar) |
2750 (190) |
| Loader Model |
MF 926X MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
2.37 (60.0) |
| Bucket cylinder diameter, in (mm) |
2.57/1.58 (65.0/40.0) |
| Weight, lb (kg) |
792 (360) |
| 73" Standard Material Bucket |
| Width, in (mm) |
73 (1850) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
| Weight, lb (kg) |
450 (205) |
| 83" Standard Material Bucket |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
554 (252) |
| 73" Heavy-Duty Material Bucket |
| Width, in (mm) |
73 (1850) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
| Weight, lb (kg) |
517 (235) |
| 71" Light Material Bucket |
| Width, in (mm) |
71 (1800) |
| Depth, in (mm) |
31.5 (800) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
24.8 (0.71) |
| Weight, lb (kg) |
376 (171) |
| Maximum lift height at pivot pin, in (mm) |
122.5 (3100) |
| Maximum lift height under level bucket, in (mm) |
114.6 (2900) |
| Maximum dump angle at maximum height, degrees |
50 |
| Maximum rollback angle at ground level, degrees |
42 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
2728 (1240) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
2684 (1220) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
3080 (1400) |
| Breakout force at pivot pin, lb (kg) |
4290 (1950) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
3476 (1580) |
| Rollback force at ground level, lb (kg) |
3300 (1500) |
