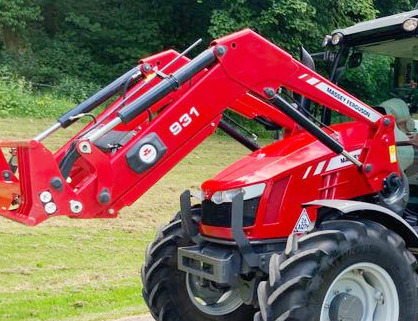

Massey Ferguson 931 Loader

The Massey Ferguson 931 loader fits Massey Ferguson 5410, 5420, 5430 tractors. The loader is equipped with double acting hydraulic boom and bucket cylinders.

The loader has a max lift height of 138.3" (3500 mm) at pin and lifting capacity of 3872 lbs (1760 kg) to full height. The breakout force is rated at 5082 lbs (2310 kg), and bucket rollback force is 5305 lbs (2410 kg) at ground level.

The Massey Ferguson 931 front-end loader is equipped with the following buckets: 83" (2100 mm) standard material and heavy-duty material buckets with a heaped capacity of 28.7 cu.ft (0.82 m3), 79" (2000 mm) high volume bucket with a heaped capacity of 40.6 cu.ft (1.16 m3), or 79" (2000 mm) light material bucket with a heaped capacity of 39.5 cu.ft (1.13 m3).

Compatible Tractors
Tractor Models Massey Ferguson 5410, 5420, 5430
Front Tires 11.2R24
Rear Tires 16.9R30
Hydraulic Pressure, psi (bar) 2750 (190)

Loader
Loader Model MF 931 NSL
Leveling Configuration Non self leveling
Lift cylinder diameter, in (mm) 2.77/1.58 (70/40)
Bucket cylinder diameter, in (mm) 2.96/1.58 (75/40)
Weight, lb (kg) 990 (450)

Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 627 (285)


High Volume Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 40.6 (1.16)
Weight, lb (kg) 600 (273)

Light Material Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 39.5 (1.13)
Weight, lb (kg) 535 (243)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 138.3 (3500)
Maximum lift height under level bucket, in (mm) 126.5 (3200)
Maximum dump angle at maximum height, degrees 58
Maximum rollback angle at ground level, degrees 44

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3872 (1760)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 2684 (1220)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 2750 (1250)
Breakout force at pivot pin, lb (kg) 5082 (2310)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3810 (1730)
Rollback force at ground level, lb (kg) 5305 (2410)
