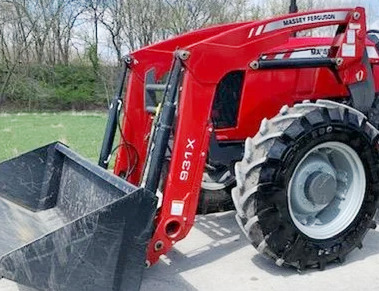

Massey Ferguson 931X Loader
The
MF 931X front end loader is available for Massey Ferguson 4708, 4709 tractors.
The front end loader is equipped with double acting boom and bucket hydraulic
cylinders.
The front end loader has a lifting capacity (at pin) of 3740 lbs (1700
kg) to maximum height of 134.4" (3400 mm) and breakout force of 5210 lbs
(2360 kg). The bucket dump clearance is 102" (2590 mm) at maximum dump
angle of 50 degrees. The time to raise the boom is 4.8 seconds from
ground level to full height, and bucket dump time is 4.3 sec.
The Massey Ferguson 931X loader is compatible with the following
buckets: a 73" (1850 mm) standard material bucket with a rated capacity
of 10.7 cu.ft (0.31 cu.m), 73" (1850 mm) heavy-duty material bucket with
a rated capacity of 10.5 cu.ft (0.30 cu.m), or 83" (2100 mm) high volume
bucket with a rated capacity of 17.4 cu.ft (0.50 cu.m).
| Tractor Models |
Massey Ferguson 4708, 4709 |
| Front Tires |
320/85R24 |
| Rear Tires |
420/85R30 |
| Hydraulic System Flow, gpm (lpm) |
17.2 (65.0) |
| Loader model |
MF 931X NSL |
| Leveling configuration |
Non self leveling |
| Lift cylinder (rod diameter), in (mm) |
70 |
| Bucket cylinder (rod diameter), in (mm) |
70/40 |
| Weight (standard configuration), lb (kg) |
738 (335) |
| Bucket width, in (mm) |
73 (1850) |
| Capacity, ft3 (m3) |
10.7 (0.31) |
| Weight, lb (kg) |
223 (101) |
| Heavy-Duty Material Bucket |
| Bucket width (heavy duty), in (mm) |
73 (1850) |
| Capacity, ft3 (m3) |
10.7 (0.31) |
| Weight, lb (kg) |
283 (129) |
| Bucket width, in (mm) |
83 (2100) |
| Capacity, ft3 (m3) |
17.4 (0.50) |
| Weight, lb (kg) |
394 (180) |
| Maximum lift height at pivot pin, in (mm) |
134.4 (3400) |
| Maximum lift height under level bucket, in (mm) |
126.5 (3200) |
| Maximum dump angle at maximum height, degrees |
50 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
3740 (1700) |
| Lift capacity to ground level at pivot pin, lb (kg) |
5522 (2510) |
| Lift capacity to maximum height at 31.5" (800 mm) from pivot pin, lb (kg) |
2135 (970) |
| Lift capacity to 1.5m height at 31.5" (800 mm) from pivot pin, lb (kg) |
3015 (1370) |
| Lift capacity to ground level at 31.5" (800 mm) from pivot pin, lb (kg) |
3520 (1600) |
| Breakout force at pivot pin, lb (kg) |
5210 (2360) |
| Breakout force at 31.5" (800 mm) from pivot pin, lb (kg) |
3540 (1600) |
| Rollback force at ground level at 31.5" (800 mm), lb (kg) |
4205 (1910) |
| Raising time to full height, sec |
4.8 |
| Lowering time, sec |
3.2 |
| Bucket dumping time, sec |
4.3 |
| Bucket rollback time, sec |
2.9 |
