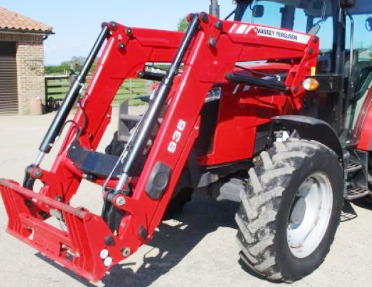

Massey Ferguson 936 Loader

The Massey Ferguson 936 MSL loader was designed for Massey Ferguson 4708, 4709, 4610 tractors. The loader is equipped with double acting bucket and lifting hydraulic cylinders.

The loader has a maximum lift height of 138.3" (3500 mm) at pin and lifting capacity of 3344 lbs (1520 kg) at full height. The rollback force is 5236 lbs (2380 kg) at ground level, and bucket's breakout force is 4225 lbs (1920 kg).

The Massey Ferguson 936 front-end loader is compatible with the following buckets: 73" (1850 mm) and 83" (2100 mm) heavy-duty material buckets with heaped capacities of 25.2 cu.ft (0.72 m3) and 28.7 cu.ft (0.82 m3), 87" (2200 mm) high volume bucket with a heaped capacity of 44.8 cu.ft (1.28 m3), or 87" (2200 mm) light material bucket with a heaped capacity of 43.7 cu.ft (1.25 m3).

Compatible Tractors
Tractor Models Massey Ferguson 4708, 4709, 4610
Front Tires 320/85R24
Rear Tires 420/85R30
Hydraulic Pressure, psi (bar) 2750 (190)

Loader
Loader Model MF 936 MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 2.57/1.58 (65.0/40.0)
Bucket cylinder diameter, in (mm) 2.75/1.58 (65.0/40.0)
Weight, lb (kg) 1145 (521)

73" Heavy-Duty Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 517 (235)

83" Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 627 (285)


87" High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

87" Light Material Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 43.7 (1.25)
Weight, lb (kg) 577 (262)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 138.3 (3500)
Maximum lift height under level bucket, in (mm) 126.5 (3200)
Maximum dump angle at maximum height, degrees 58
Maximum rollback angle at ground level, degrees 43

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3344 (1520)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 2882 (1310)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3170 (1440)
Breakout force at pivot pin, lb (kg) 4225 (1920)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3366 (1530)
Rollback force at ground level, lb (kg) 5236 (2380)
