Massey Ferguson 936X Loader
The

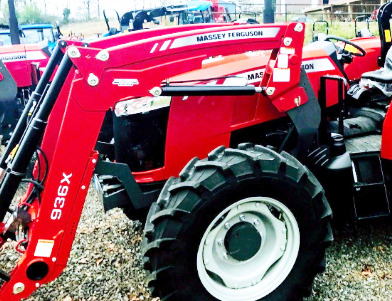

Massey Ferguson 936X mechanical self leveling front-end loader fits Massey
Ferguson 4609, 4610, 4707, 4708 tractors. The loader has double acting hydraulic
bucket and lifting cylinders.
The loader’s max lift height is 134.4" (3400 mm) at pin, and maximum
dump angle is 50 degrees at full height. The lift capacity is 3102 lbs
(1410 kg) at maximum height (bucket pin), and a bucket's breakout force
is 4620 lbs (2100 kg).
The Massey Ferguson 936X loader is equipped with 73" (1850 mm) and 83"
(2100 mm) standard material buckets with heaped capacities of 25.2 cu.ft
(0.72 m3) and 28.7 cu.ft (0.82 m3), 79" (2000 mm) high volume bucket
with a heaped capacity of 40.6 cu.ft (1.16 m3), or 87" (2200 mm) light
material bucket with a heaped capacity of 43.7 cu.ft (1.25 m3).
| Tractor Models |
Massey Ferguson 4609, 4610, 4707, 4708 |
| Front Tires |
320/85R24 |
| Rear Tires |
420/85R30 |
| Hydraulic Pressure, psi (bar) |
2750 (190) |
| Loader Model |
MF 936X MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
2.57 (65.0) |
| Bucket cylinder diameter, in (mm) |
2.77/1.58 (65.0/40.0) |
| Weight, lb (kg) |
858 (390) |
| 73" Standard Material Bucket |
| Width, in (mm) |
73 (1850) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
25.2 (0.72) |
| Weight, lb (kg) |
450 (205) |
| 83" Standard Material Bucket |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
554 (252) |
| Width, in (mm) |
79 (2000) |
| Depth, in (mm) |
41 (1040) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
40.6 (1.16) |
| Weight, lb (kg) |
600 (273) |
| 87" Light Material Bucket |
| Width, in (mm) |
87 (2200) |
| Depth, in (mm) |
39.5 (1000) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
43.7 (1.25) |
| Weight, lb (kg) |
577 (262) |
| Maximum lift height at pivot pin, in (mm) |
134.4 (3400) |
| Maximum lift height under level bucket, in (mm) |
126.5 (3200) |
| Maximum dump angle at maximum height, degrees |
50 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
3102 (1410) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
3344 (1520) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
3432 (1560) |
| Breakout force at pivot pin, lb (kg) |
4620 (2100) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
3652 (1660) |
| Rollback force at ground level, lb (kg) |
4158 (1890) |
