Massey Ferguson 938 Loader
The

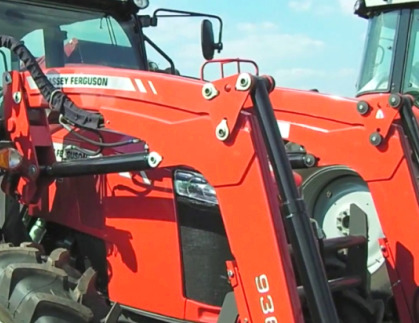

Massey Ferguson 938 MSL front end loader was designed for Massey Ferguson 5420,
5430 tractors. The loader has double acting hydraulic lift and bucket cylinders.
The loader has a maximum lift height of 138.3" (3500 mm) at pin and lift
capacity of 3960 lbs (1800 kg) to full height. The boom breakout force
is 4995 lbs (2270 kg), and bucket rollback force is 5236 lbs (2380 kg)
at ground level.
Compatible buckets for the Massey Ferguson 938 loader: 83" (2100 mm)
standard material and heavy-duty material buckets with a heaped capacity
of 28.7 cu.ft (0.82 m3), 79" (2000 mm) high volume bucket with a heaped
capacity of 40.6 cu.ft (1.16 m3), or 79" (2000 mm) light material bucket
with a heaped capacity of 39.5 cu.ft (1.13 m3).
| Tractor Models |
Massey Ferguson 5420, 5430 |
| Front Tires |
11.2R24 |
| Rear Tires |
16.9R30 |
| Hydraulic Pressure, psi (bar) |
2830 (195) |
| Loader Model |
MF 938 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
2.75/1.58 (70/40) |
| Bucket cylinder diameter, in (mm) |
2.95/1.58 (75/40) |
| Weight, lb (kg) |
1170 (531) |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
554 (252) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
627 (285) |
| Width, in (mm) |
79 (2000) |
| Depth, in (mm) |
41 (1040) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
40.6 (1.16) |
| Weight, lb (kg) |
600 (273) |
| Width, in (mm) |
79 (2000) |
| Depth, in (mm) |
39.5 (1000) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
39.5 (1.13) |
| Weight, lb (kg) |
535 (243) |
| Maximum lift height at pivot pin, in (mm) |
138.3 (3500) |
| Maximum lift height under level bucket, in (mm) |
126.5 (3200) |
| Maximum dump angle at maximum height, degrees |
58 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
3960 (1800) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
3498 (1590) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
3828 (1740) |
| Breakout force at pivot pin, lb (kg) |
4995 (2270) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
4048 (1840) |
| Rollback force at ground level, lb (kg) |
5236 (2380) |
