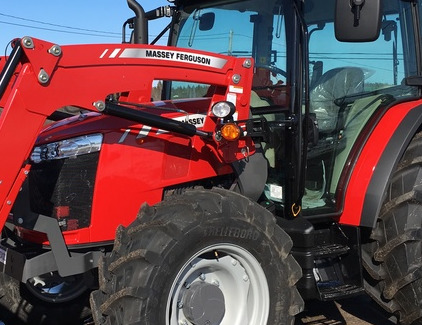

Massey Ferguson 939 Loader
The
Massey Ferguson 939 mechanical self leveling loader is designed to fit Massey
Ferguson 5410, 5420, 5430 tractors. The loader has double acting hydraulic boom
and bucket cylinders.
The loader’s maximum lift height is 146.2 inches (3700 mm) at bucket
pivot point and 134.4 inches (3400 mm) under level bucket. The lifting
capacity is 3345 lbs (1520 kg) at full height (bucket pivot point), and
boom breakout force is 3432 lbs (1560 kg).
The Massey Ferguson 939 front-end loader is compatible with the
following buckets: 83" (2100 mm) standard material and heavy-duty
material buckets with a heaped capacity of 28.7 cu.ft (0.82 m3), 79"
(2000 mm) high volume bucket with a heaped capacity of 40.6 cu.ft (1.16
m3), or 79" (2000 mm) light material bucket with a heaped capacity of
39.5 cu.ft (1.13 m3).
| Tractor Models |
Massey Ferguson 5410, 5420, 5430 |
| Front Tires |
11.2R24 |
| Rear Tires |
16.9R30 |
| Hydraulic Pressure, psi (bar) |
2830 (195) |
| Loader Model |
MF 939 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
2.75/1.58 (70/40) |
| Bucket cylinder diameter, in (mm) |
2.95/1.58 (75/40) |
| Weight, lb (kg) |
1170 (531) |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
554 (252) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
83 (2100) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
28.7 (0.82) |
| Weight, lb (kg) |
627 (285) |
| Width, in (mm) |
79 (2000) |
| Depth, in (mm) |
41 (1040) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
40.6 (1.16) |
| Weight, lb (kg) |
600 (273) |
| Width, in (mm) |
79 (2000) |
| Depth, in (mm) |
39.5 (1000) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
39.5 (1.13) |
| Weight, lb (kg) |
535 (243) |
| Maximum lift height at pivot pin, in (mm) |
146.2 (3700) |
| Maximum lift height under level bucket, in (mm) |
134.4 (3400) |
| Maximum dump angle at maximum height, degrees |
58 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
3345 (1520) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
2882 (1310) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
2992 (1360) |
| Breakout force at pivot pin, lb (kg) |
3432 (1560) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
3036 (1380) |
| Rollback force at ground level, lb (kg) |
5126 (2330) |
