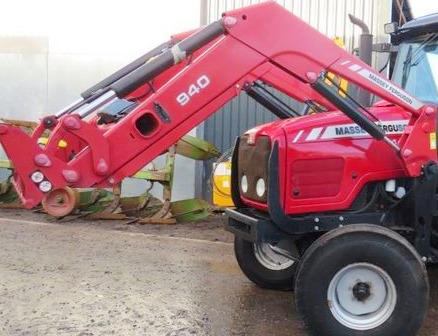

Massey Ferguson 940 Loader
The
Massey Ferguson 940 NSL front-end loader fits Massey Ferguson 5435, 5445, 5455,
5460 tractors. The front end loader hydraulic system includes double-acting
bucket and lifting hydraulic cylinders.
The loader has a lift capacity (at pin) of 4717 lbs (2140 kg) to a 148"
(3760 mm) maximum height and bucket's breakout force of 5798 lbs (2630
kg). A full dump clearance with a 60-degree maximum dump angle is 106"
(2700 mm). The rated cycle times are 5.1 seconds lifting to full height,
and 1.5 seconds full bucket dumping.
The Massey Ferguson 940 loader is equipped with 95" (2400 mm) standard
material and heavy-duty material buckets with a heaped capacity of 33.2
cu.ft (0.95 m3), or 87" (2200 mm) high volume bucket with a heaped
capacity of 44.8 cu.ft (1.28 m3).
Tractor Models |
Massey Ferguson 5435, 5445, 5455, 5460 |
Front Tires |
14.9R28 |
Rear Tires |
18.4R38 |
Pump Capacity, gpm (lpm) |
15.6 (59.0) |
Hydraulic Pressure, psi (bar) |
2830 (195) |
Loader Model |
MF 940 NSL |
Leveling Configuration |
Non-self leveling |
Loader Weight, lbs (kg) |
1133 (515) |
Width, in (mm) |
95 (2400) |
Depth, in (mm) |
32 (810) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
Weight, lb (kg) |
647 (294) |
Heavy-Duty Material Bucket |
Width, in (mm) |
95 (2400) |
Depth, in (mm) |
34 (860) |
Height, in (mm) |
29.5 (750) |
Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
Weight, lb (kg) |
748 (340) |
Width, in (mm) |
87 (2200) |
Depth, in (mm) |
41 (1040) |
Height, in (mm) |
33.5 (850) |
Heaped Capacity, cu.ft (m3) |
44.8 (1.28) |
Weight, lb (kg) |
647 (294) |
Maximum Lift Height to Pivot Pin, in (mm) |
148 (3760) |
Maximum Lift Height under Level Bucket, in (mm) |
136 (3460) |
Clearance with Bucket Dumped, in (mm) |
106 (2700) |
Reach at Maximum Lift Height, in (mm) |
22 (580) |
Maximum Dump Angle, degrees |
60 |
Reach with Bucket on Ground, in (mm) |
80 (2040) |
Maximum Rollback Angle, degrees |
42 |
Digging Depth, in (mm) |
7 (190) |
Lift Capacity to Max Height at Pivot Pins, lbs (kg) |
4717 (2140) |
Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) |
3109 (1410) |
Max Breakout Force at Pivot Pins, lbs (kg) |
5798 (2630) |
Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) |
3770 (1710) |
Loader Raise, sec |
5,1 |
Loader Lower, sec |
3.2 |
Bucket Dump, sec |
1,5 |
