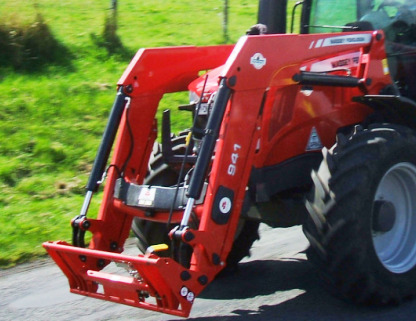

Massey Ferguson 941 Loader

The Massey Ferguson 941 non self leveling front end loader is available for Massey Ferguson 5608, 5609, 5610 tractors. The loader is equipped with double acting bucket and lift hydraulic cylinders. The loader’s max lift height is 148.2" (3750 mm) at pin, and bucket dump angle at maximum height is 60 degrees. The lifting capacity is 4730 lbs (2150 kg) to full height at pin, and breakout force (bucket on ground) is 6182 lbs (2810 kg).

Compatible buckets for Massey Ferguson 941 loader: a 83" (2100 mm) heavy-duty material bucket with heaped capacity of 28.7 cu.ft (0.82 cu.m), 95 (2400) light material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), and 87" (2200 mm) high volume bucket with heaped capacity of 44.8 cu.ft (1.28 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5608, 5609, 5610
Front Tires 380/70R28
Rear Tires 480/70R38
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 941 NSL
Leveling Configuration Non self leveling
Lift cylinder diameter, in (mm) 3.16/1.58 (80/40)
Bucket cylinder diameter, in (mm) 3.16/1.58 (80/40)
Weight, lb (kg) 1133 (515)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)


87" High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 148.2 (3750)
Maximum lift height under level bucket, in (mm) 136.4 (3450)
Maximum dump angle at maximum height, degrees 60
Maximum rollback angle at ground level, degrees 43

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4730 (2150)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 3300 (1500)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3432 (1560)
Breakout force at pivot pin, lb (kg) 6182 (2810)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 4092 (1860)
Rollback force at ground level, lb (kg) 6160 (2800)
