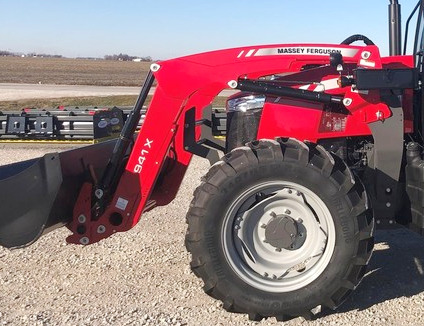

Massey Ferguson 941X Loader

The Massey Ferguson 941X non self leveling loader is available for Massey Ferguson 5608, 5610 tractors. The loader is equipped with double acting hydraulic lift and bucket cylinders. The front end loader has a lifting capacity (at bucket pin) of 3960 lbs (1800 kg) to full height of 146.2" (3700 mm) and boom breakout force of 6010 lbs (2730 kg). The bucket maximum dump angle is 49 degrees at full height.

The Massey Ferguson 941X loader is equipped with the following buckets: a 83" (2100 mm) standard material bucket with heaped capacity of 28.7 cu.ft (0.82 cu.m), 73" (1850 mm) heavy-duty material bucket with heaped capacity of 25.2 cu.ft (0.72 cu.m), and 79" (2000 mm) light material bucket with heaped capacity of 39.5 cu.ft (1.13 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5608, 5610
Front Tires 380/70R28
Rear Tires 480/70R38
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 941X NSL
Leveling Configuration Non self leveling
Lift cylinder diameter, in (mm) 2.95 (75)
Bucket cylinder diameter, in (mm) 2.95/1.58 (75/40)
Weight, lb (kg) 792 (360)

Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

Heavy-Duty Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 25.2 (0.72)
Weight, lb (kg) 517 (235)


Light Material Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 39.5 (1.13)
Weight, lb (kg) 535 (243)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 146.2 (3700)
Maximum lift height under level bucket, in (mm) 138.3 (3500)
Maximum dump angle at maximum height, degrees 49
Maximum rollback angle at ground level, degrees 42

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3960 (1800)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 2222 (1010)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3344 (1520)
Breakout force at pivot pin, lb (kg) 6010 (2730)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3895 (1770)
Rollback force at ground level, lb (kg) 5060 (2300)
