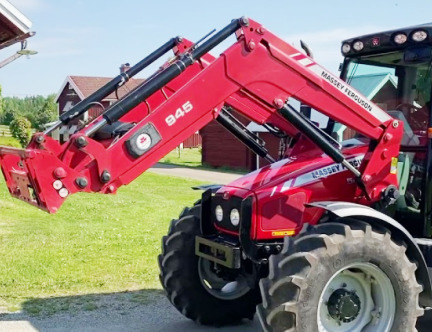

Massey Ferguson 945 Loader

The Massey Ferguson 945 front end loader is fitted to Massey Ferguson 5435, 5445, 5455, 5460 tractors. The loader has double acting hydraulic lift and bucket cylinders. The loader has a lifting capacity (at bucket pin) of 4079 lbs (1850 kg) to a max height of 148" (3760 mm) and boom breakout force of 4938 lbs (2240 kg). The bucket dump clearance with a 60-degree max dump angle is 106" (2700 mm).

The estimated cycle times are 5.5 seconds raising to maximum height and 1.5 seconds to full bucket dump. The Massey Ferguson 945 loader is compatible with a 95" (2400 mm) standard material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 83" (2100 mm) heavy-duty material bucket with heaped capacity of 28.7 cu.ft (0.82 cu.m), and 79" (2000 mm) light material bucket with heaped capacity of 39.5 cu.ft (1.13 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5435, 5445, 5455, 5460
Front Tires 14.9R28
Rear Tires 18.4R38
Pump Capacity, gpm (lpm) 15.6 (59.0)
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 945 MSL
Leveling Configuration Mechanical self leveling
Loader Weight, lbs (kg) 1287 (585)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 627 (285)

Light Material Bucket
Width, in (mm) 79 (2000)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 39.5 (1.13)
Weight, lb (kg) 535 (243)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 148 (3760)
Maximum Lift Height under Level Bucket, in (mm) 136 (3460)
Clearance with Bucket Dumped, in (mm) 106 (2700)
Reach at Maximum Lift Height, in (mm) 22 (580)
Maximum Dump Angle, degrees 60
Reach with Bucket on Ground, in (mm) 80 (2040)
Maximum Rollback Angle, degrees 42
Digging Depth, in (mm) 7 (190)

Operating Data
Lift Capacity to Max Height at Pivot Pins, lbs (kg) 4079 (1850)
Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 3328 (1510)
Max Breakout Force at Pivot Pins, lbs (kg) 4938 (2240)
Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 4079 (1850)

Cycle Times
Loader Raise, sec 5,5
Loader Lower, sec 3,4
Bucket Dump, sec 1,5
