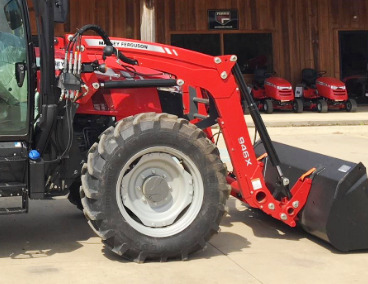

Massey Ferguson 946X Loader

The Massey Ferguson 946X mechanical self leveling loader fits Massey Ferguson 5700 series tractors. The front end loader hydraulic system includes double-acting lift and bucket hydraulic cylinders. The loader’s maximum lift height is 146.2 inches (3700 mm) at pin, and maximum dump angle at full height is 49 degrees. The lifting capacity is 3322 lbs (1510 kg) to maximum lift height at pin, and boom breakout force is 5104 lbs (2320 kg).

The Massey Ferguson 946X loader is compatible with the following buckets: a 95" (2400 mm) standard material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 83" (2100 mm) heavy-duty material bucket with heaped capacity of 28.7 cu.ft (0.82 cu.m), and 87" (2200 mm) high volume bucket with heaped capacity of 44.8 cu.ft (1.28 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5700
Front Tires 340/85R28
Rear Tires 420/85R38
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 946X MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 2.77 (70.0)
Bucket cylinder diameter, in (mm) 2.96/1.58 (65.0/40.0)
Weight, lb (kg) 925 (420)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 627 (285)


High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 146.2 (3700)
Maximum lift height under level bucket, in (mm) 138.3 (3500)
Maximum dump angle at maximum height, degrees 49
Maximum rollback angle at ground level, degrees 42

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3322 (1510)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 3498 (1590)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3762 (1710)
Breakout force at pivot pin, lb (kg) 5104 (2320)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 4070 (1850)
Rollback force at ground level, lb (kg) 5016 (2280)
