Massey Ferguson 948 Loader

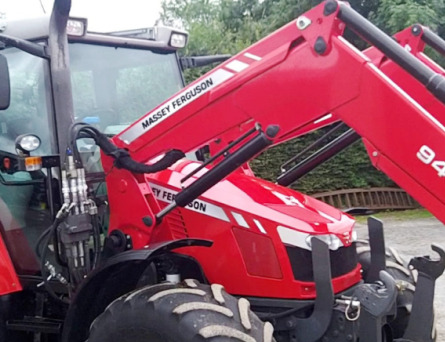

The Massey Ferguson 948 mechanical self leveling loader is available for Massey Ferguson 5445, 5455 tractors. The front end loader hydraulic system includes double-acting hydraulic lifting and bucket cylinders. The front end loader has a lifting capacity (at pin) of 4862 lbs (2210 kg) to a maximum height of 148.2" (3750 mm) and breakout force (bucket on ground) of 6095 lbs (2770 kg). The bucket dump angle is 60 degrees at maximum height.

Compatible buckets for Massey Ferguson 948 loader: a 95" (2400 mm) standard material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 102" (2600 mm) heavy-duty material bucket with heaped capacity of 36.1 cu.ft (1.03 cu.m), and 87" (2200 mm) high volume bucket with heaped capacity of 44.8 cu.ft (1.28 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5445, 5455
Front Tires 14.9R28
Rear Tires 18.4R38
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 948 MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 3.15/1.58 (80/40)
Bucket cylinder diameter, in (mm) 3.15/1.58 (80/40)
Weight, lb (kg) 1287 (585)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 803 (365)


High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 148.2 (3750)
Maximum lift height under level bucket, in (mm) 136.4 (3450)
Maximum dump angle at maximum height, degrees 60
Maximum rollback angle at ground level, degrees 43

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4862 (2210)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 4224 (1920)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 4642 (2110)
Breakout force at pivot pin, lb (kg) 6095 (2770)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 4950 (2250)
Rollback force at ground level, lb (kg) 6094 (2770)
