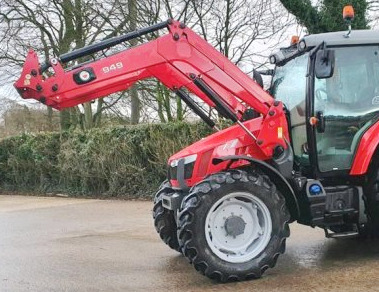

Massey Ferguson 949 Loader

The Massey Ferguson 949 mechanical self leveling loader was designed for Massey Ferguson 5608, 5609, 5610 tractors. The loader has double acting hydraulic lifting and bucket cylinders. The loader has a lifting capacity (at pin) of 4158 lbs (1890 kg) to full height of 154.2 inches (3900 mm) and breakout force of 4884 lbs (2220 kg). The bucket dump angle at maximum height is 54 degrees.

The Massey Ferguson 949 front-end loader is equipped with the following buckets: a 95" (2400 mm) standard material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 102" (2600 mm) heavy-duty material bucket with heaped capacity of 36.1 cu.ft (1.03 cu.m), and 87" (2200 mm) light material bucket with heaped capacity of 44.8 cu.ft (1.28 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5608, 5609, 5610
Front Tires 380/70R28
Rear Tires 480/70R38
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 949 MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 2.96/1.58 (75/40)
Bucket cylinder diameter, in (mm) 3.16/1.58 (80/40)
Weight, lb (kg) 1310 (595)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 803 (365)


Light Material Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 39.5 (1000)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 43.7 (1.25)
Weight, lb (kg) 577 (262)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 154.2 (3900)
Maximum lift height under level bucket, in (mm) 142.3 (3600)
Maximum dump angle at maximum height, degrees 54
Maximum rollback angle at ground level, degrees 45

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4158 (1890)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 3520 (1600)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3784 (1720)
Breakout force at pivot pin, lb (kg) 4884 (2220)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 3960 (1800)
Rollback force at ground level, lb (kg) 6226 (2830)
