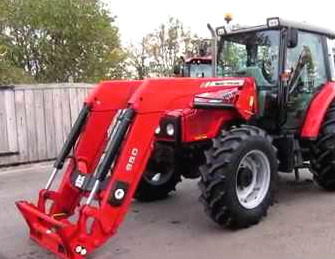

Massey Ferguson 950 Loader

The Massey Ferguson 950 non-self leveling loader is fitted to Massey Ferguson 5465, 5470, 5475, 5480 tractors. The loader hydraulic system includes double-acting lifting and bucket hydraulic cylinders. The front end loader has a lifting capacity (at bucket pin) of 5071 lbs (2300 kg) to a max height of 157" (3990 mm) and breakout force (bucket on ground) of 6173 lbs (2800 kg). The bucket dump clearance is 116" (2950 mm) at maximum dump angle of 58 degrees.

The time to raise the boom is 6.1 seconds from ground level to full height, and bucket dumping time is 1.6 sec. The Massey Ferguson 950 loader is equipped with a 95" (2400 mm) standard material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 95" (2400 mm) heavy-duty material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), or 87" (2200 mm) high volume bucket with heaped capacity of 44.8 cu.ft (1.28 cu.m).T

Compatible Tractors
Tractor Models Massey Ferguson 5465, 5470, 5475, 5480
Front Tires 380/85R28
Rear Tires 480/80R38
Pump Capacity, gpm (lpm) 15.6 (59.0)
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 950 NSL
Leveling Configuration Non-self leveling
Loader Weight, lbs (kg) 1219 (554)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 748 (340)

High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 157 (3990)
Maximum Lift Height under Level Bucket, in (mm) 145 (3690)
Clearance with Bucket Dumped, in (mm) 116 (2950)
Reach at Maximum Lift Height, in (mm) 19 (490)
Maximum Dump Angle, degrees 58
Reach with Bucket on Ground, in (mm) 79 (2020)
Maximum Rollback Angle, degrees 41
Digging Depth, in (mm) 6 (150)

Operating Data
Lift Capacity to Max Height at Pivot Pins, lbs (kg) 5071 (2300)
Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 3527 (1600)
Max Breakout Force at Pivot Pins, lbs (kg) 6173 (2800)
Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 4189 (1900)

Cycle Times
Loader Raise, sec 6,1
Loader Lower, sec 3,8
Bucket Dump, sec 1,6
