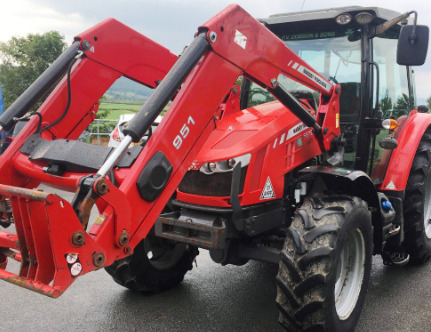

Massey Ferguson 951 Loader
The
Massey Ferguson 951 non self leveling loader was designed for Ferguson 5700SL,
6700S series tractors. The loader has double acting bucket and boom hydraulic
cylinders. The loader has a maximum lift height of 158.1" (4000 mm) at pin and
maximum dump angle at full height of 56 degrees. The lift capacity is 5082 lbs
(2310 kg) at full height (pivot pin), and breakout force (bucket on ground) is
6424 lbs (2920 kg).
The Massey Ferguson 951 front-end loader is compatible with the
following buckets: a 95" (2400 mm) standard material bucket with heaped
capacity of 33.2 cu.ft (0.95 cu.m), 95" (2400 mm) heavy-duty material
bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 102" (2600 mm)
heavy-duty material bucket with heaped capacity of 36.1 cu.ft (1.03
cu.m), 87" (2200 mm) light material bucket with heaped capacity of 43.7
cu.ft (1.258 cu.m), or 87" (2200 mm) high volume bucket with heaped
capacity of 44.8 cu.ft (1.28 cu.m).
| Tractor Models |
Massey Ferguson 5700SL, 6700S |
| Front Tires |
340/85R28 |
| Rear Tires |
420/85R38 |
| Hydraulic Pressure, psi (bar) |
2830 (195) |
| Loader Model |
MF 951 NSL |
| Leveling Configuration |
Non self leveling |
| Lift cylinder diameter, in (mm) |
3.36/1.98 (85/50) |
| Bucket cylinder diameter, in (mm) |
3.16/1.58 (80/40) |
| Weight, lb (kg) |
1220 (554) |
| 95" Standard Material Bucket |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
647 (294) |
| 95" Heavy-Duty Material Bucket |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
748 (340) |
| 102" Heavy-Duty Material Bucket |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
36.1 (1.03) |
| Weight, lb (kg) |
803 (365) |
| Width, in (mm) |
87 (2200) |
| Depth, in (mm) |
41 (1040) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
44.8 (1.28) |
| Weight, lb (kg) |
647 (294) |
| 87" Light Material Bucket |
| Width, in (mm) |
87 (2200) |
| Depth, in (mm) |
39.5 (1000) |
| Height, in (mm) |
33.5 (850) |
| Heaped Capacity, cu.ft (m3) |
43.7 (1.25) |
| Weight, lb (kg) |
577 (262) |
| Maximum lift height at pivot pin, in (mm) |
158.1 (4000) |
| Maximum lift height under level bucket, in (mm) |
146.2 (3700) |
| Maximum dump angle at maximum height, degrees |
56 |
| Maximum rollback angle at ground level, degrees |
46 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
5082 (2310) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
3608 (1640) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
3696 (1680) |
| Breakout force at pivot pin, lb (kg) |
6424 (2920) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
4686 (2130) |
| Rollback force at ground level, lb (kg) |
6248 (2840) |
