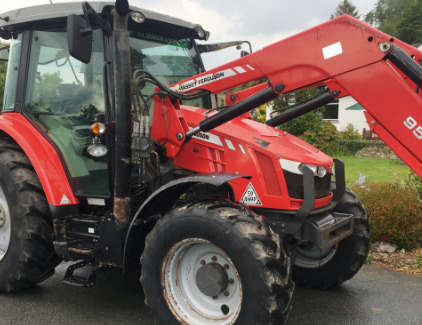

Massey Ferguson 951X Loader

The Massey Ferguson 951X non self leveling loader is used for Massey Ferguson 5611, 5612 tractors. The front end loader hydraulic system includes double-acting hydraulic bucket and lifting cylinders. The loader has a maximum lift height of 154.2 inches (3900 mm) at pin and dump angle at maximum height of 46 degrees. The lift capacity is 4160 lbs (1890 kg) at maximum height (bucket pin), and breakout force is 6470 lbs (2940 kg).

Compatible buckets for Massey Ferguson 951X front-end loader: a 83" (2100 mm) standard material bucket with heaped capacity of 28.7 cu.ft (0.82 cu.m), 95" (2400 mm) standard material bucket with heaped capacity of 33.2 cu.ft (0.95 cu.m), 83" (2100 mm) heavy-duty material bucket with heaped capacity of 28.7 cu.ft (0.82 cu.m), or 87" (2200 mm) high volume bucket with heaped capacity of 44.8 cu.ft (1.28 cu.m).

Compatible Tractors
Tractor Models Massey Ferguson 5611, 5612
Front Tires 380/70R28
Rear Tires 480/70R38
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 951X NSL
Leveling Configuration Non self leveling
Lift cylinder diameter, in (mm) 3.16 (80)
Bucket cylinder diameter, in (mm) 3.16/1.58 (80/40)
Weight, lb (kg) 858 (390)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 554 (252)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)


83" Heavy-Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 28.7 (0.82)
Weight, lb (kg) 627 (285)

87" High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 154.2 (3900)
Maximum lift height under level bucket, in (mm) 146.2 (3700)
Maximum dump angle at maximum height, degrees 46
Maximum rollback angle at ground level, degrees 43

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4160 (1890)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 2376 (1080)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 3675 (1670)
Breakout force at pivot pin, lb (kg) 6470 (2940)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 4312 (1960)
Rollback force at ground level, lb (kg) 6075 (2760)
