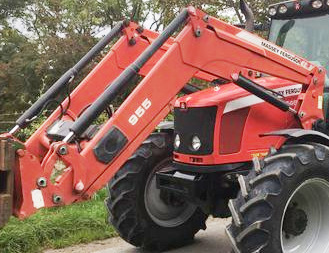

Massey Ferguson 955 Loader

The MF 955 front end loader is designed for Massey Ferguson 5465, 5470, 5475, 5480 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The Massey Ferguson 955 front end loader has a lift capacity of 4409 lbs (2000 kg) to a max height of 157" (3990 mm), and breakout force (bucket on ground) of 5291 lbs (2400 kg). The clearance with a bucket dumped is 116" (2950 mm) at maximum dump angle of 58 degrees.

The estimated cycle times are 5.1 seconds lifting to maximum height, and 1.6 seconds maximum bucket dumping. The MF 955 loader is compatible with the following buckets: 95" (2400 mm) standard material and heavy-duty material buckets with rated capacities of 0.95 m3 (33.2 cu.ft), or 87" (2200 mm) high volume bucket with a rated capacity of 1.28 m3 (44.8 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 5465, 5470, 5475, 5480
Front Tires 380/85R28
Rear Tires 480/80R38
Pump Capacity, gpm (lpm) 15.6 (59.0)
Hydraulic Pressure, psi (bar) 2830 (195)

Loader
Loader Model MF 955 MSL
Leveling Configuration Mechanical self leveling
Loader Weight, lbs (kg) 1366 (621)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 748 (340)

High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 157 (3990)
Maximum Lift Height under Level Bucket, in (mm) 145 (3690)
Clearance with Bucket Dumped, in (mm) 116 (2950)
Reach at Maximum Lift Height, in (mm) 19 (490)
Maximum Dump Angle, degrees 58
Reach with Bucket on Ground, in (mm) 79 (2020)
Maximum Rollback Angle, degrees 41
Digging Depth, in (mm) 6 (150)

Operating Data
Lift Capacity to Max Height at Pivot Pins, lbs (kg) 4409 (2000)
Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 3748 (1700)
Max Breakout Force at Pivot Pins, lbs (kg) 5291 (2400)
Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 4519 (2050)

Cycle Times
Loader Raise, sec 5,1
Loader Lower, sec 3,5
Bucket Dump, sec 1,6
