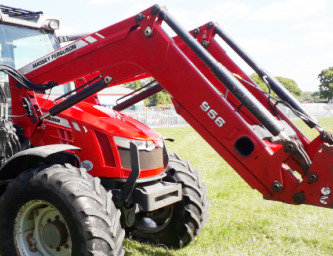

Massey Ferguson 956 Loader
The
MF 956 MSL front end loader is designed for Massey Ferguson 5611, 5612, 5700 SL,
6700 S tractors. The loader has double acting hydraulic bucket and lift
cylinders. The MF 956 front end loader has a lift capacity (at bucket pin) of
5544 lbs (2520 kg) to a max height of 158.1" (4000 mm) and breakout force
(bucket on ground) of 4532 lbs (2060 kg). The maximum bucket dump angle is 55
degrees at maximum height.
The Massey Ferguson 956 loader is compatible with the following buckets:
95" (2400 mm) standard material bucket with a heaped capacity of 0.95 m3
(33.5 cu.ft), 95" (2400 mm) high volume bucket with a heaped capacity of
1.71 m3 (59.5 cu.ft), 95" (2400 mm) and 102" (2600 mm) heavy-duty
material buckets with heaped capacities of 0.95 m3 (33.5 cu.ft) and 1.03
m3 (36.1 cu.ft), or 87" (2200 mm) grading bucket with a heaped capacity
of 0.65 m3 (22.7 cu.ft).
| Tractor Models |
Massey Ferguson 5611, 5612, 5700SL, 6700S |
| Front Tires |
340/85R28 |
| Rear Tires |
420/85R38 |
| Hydraulic Pressure, psi (bar) |
2900 (200) |
| Loader Model |
MF 956 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
3.16/1.58 (80/40) |
| Bucket cylinder diameter, in (mm) |
3.16/1.58 (80/40) |
| Weight, lb (kg) |
1366 (621) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
647 (294) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
59.5 (1.71) |
| Weight, lb (kg) |
913 (415) |
| 95" Heavy-Duty Material Bucket |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
748 (340) |
| 102" Heavy-Duty Material Bucket |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
36.1 (1.03) |
| Weight, lb (kg) |
803 (365) |
| Width, in (mm) |
87 (2200) |
| Depth, in (mm) |
43.3 (1100) |
| Height, in (mm) |
19.7 (500) |
| Heaped Capacity, cu.ft (m3) |
22.7 (0.65) |
| Weight, lb (kg) |
740 (337) |
| Maximum lift height at pivot pin, in (mm) |
158.1 (4000) |
| Maximum lift height under level bucket, in (mm) |
146.2 (3700) |
| Maximum dump angle at maximum height, degrees |
55 |
| Maximum rollback angle at ground level, degrees |
45 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
4532 (2060) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
3784 (1720) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
4246 (1930) |
| Breakout force at pivot pin, lb (kg) |
5544 (2520) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
4554 (2070) |
| Rollback force at ground level, lb (kg) |
6182 (2810) |
