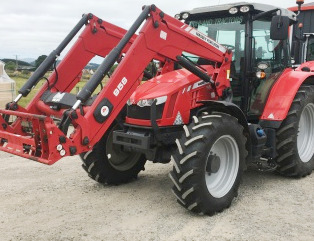

Massey Ferguson 958 Loader

The MF 958 loader is used for Massey Ferguson 6600 Series tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The MF 958 front end loader has a lifting capacity (at pivot pin) of 5214 lbs (2370 kg) to maximum height of 158.1 in (4000 mm), and bucket's breakout force of 6358 lbs (2890 kg). The maximum bucket dump angle is 55 degrees at full height.

The Massey Ferguson 958 loader is compatible with a 95" (2400 mm) standard material bucket with a rated capacity of 0.95 m3 (33.5 cu.ft), 95" (2400 mm) high volume bucket with a rated capacity of 1.71 m3 (59.5 cu.ft), 102" (2600 mm) heavy-duty material bucket with a rated capacities of 1.03 m3 (36.1 cu.ft), or 87" (2200 mm) grading bucket with a rated capacity of 0.65 m3 (22.7 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 6600 Series
Front Tires 380/85R28
Rear Tires 460/85R38
Hydraulic Pressure, psi (bar) 2900 (200)

Loader
Loader Model MF 958 MSL
Leveling Configuration Mechanical self leveling
Lift cylinder diameter, in (mm) 3.36/1.97 (85/50)
Bucket cylinder diameter, in (mm) 3.55/1.58 (90/40)
Weight, lb (kg) 1365 (621)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.5 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 803 (365)

High Volume Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 43 (1090)
Height, in (mm) 38.5 (980)
Heaped Capacity, cu.ft (m3) 59.5 (1.71)
Weight, lb (kg) 913 (415)

Grading Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 43.3 (1100)
Height, in (mm) 19.7 (500)
Heaped Capacity, cu.ft (m3) 22.7 (0.65)
Weight, lb (kg) 740 (337)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 158.1 (4000)
Maximum lift height under level bucket, in (mm) 146.2 (3700)
Maximum dump angle at maximum height, degrees 55
Maximum rollback angle at ground level, degrees 45

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 5214 (2370)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 4422 (2010)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 4950 (2250)
Breakout force at pivot pin, lb (kg) 6358 (2890)
Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) 5302 (2410)
Rollback force at ground level, lb (kg) 8470 (3850)
