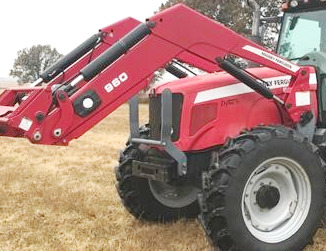

Massey Ferguson 960 Loader

The Massey Ferguson 960 NSL front end loader is designed for MF 5465, 5475, 6465, 6475, 7475 tractors. The loader has double acting hydraulic bucket and lift cylinders. The MF 960 front end loader has a lift capacity (at bucket pin) of 5445 lbs (2470 kg) to a max height of 166" (4220 mm) and breakout force (bucket on ground) of 6482 lbs (2940 kg). The clearance with a bucket dumped is 126" (3190 mm) at a maximum dump angle of 56 degrees.

The estimated cycle times are 7.1 seconds lifting to maximum height, and 1.7 seconds maximum bucket dumping. The MF 960 loader is compatible with the following buckets: a 95" (2400 mm) and 102" (2600 mm) heavy-duty material buckets with heaped capacities of 0.95 m3 (33.2 cu.ft) and 1.03 m3 (36.1 cu.ft), 87" (2200 mm) high volume bucket with a rated capacity of 1.28 m3 (44.8 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 5465, 5475, 6465, 6475, 7475
Front Tires 14.9R28
Rear Tires 18.4R38
Pump Capacity, gpm (lpm) 15.6 (59.0)
Hydraulic Pressure, psi (bar) 2900 (200)

Loader
Loader Model MF 960 NSL
Leveling Configuration Non-self leveling
Loader Weight, lbs (kg) 1382 (628)

95" Heavy-Duty Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 748 (340)

102" Heavy-Duty Material Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 803 (365)

High Volume Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Heaped Capacity, cu.ft (m3) 44.8 (1.28)
Weight, lb (kg) 647 (294)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 166 (4220)
Maximum Lift Height under Level Bucket, in (mm) 155 (3930)
Clearance with Bucket Dumped, in (mm) 126 (3190)
Reach at Maximum Lift Height, in (mm) 18 (450)
Maximum Dump Angle, degrees 56
Reach with Bucket on Ground, in (mm) 90 (2290)
Maximum Rollback Angle, degrees 41
Digging Depth, in (mm) 6 (150)

Operating Data
Lift Capacity to Max Height at Pivot Pins, lbs (kg) 5445 (2470)
Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 3880 (1760)
Max Breakout Force at Pivot Pins, lbs (kg) 6482 (2940)5
Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 4497 (2040)

Cycle Times
Loader Raise, sec 7,1
Loader Lower, sec 4,4
Bucket Dump, sec 1,7
