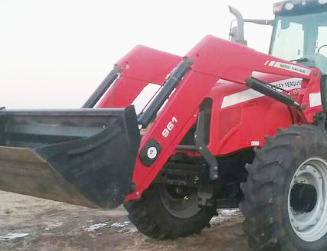

Massey Ferguson 961 Loader

The MF 961 non self leveling loader is available for Massey Ferguson 7614, 7615, 7718 tractors. The MF 961 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 168" (4270 mm) at pin and max bucket dump angle of 52 degrees. The lifting capacity is 5962 lbs (2710 kg) at maximum height (bucket pin), and breakout force is 7084 lbs (3220 kg).

Compatible buckets for the Massey Ferguson 961 front-end loader: 95" (2400 mm) standard material bucket with a rated capacity of 0.95 m3 (33.2 cu.ft), 95" (2400 mm) high volume bucket with a rated capacity of 1.71 m3 (59.5 cu.ft), 102" (2600 mm) heavy-duty material bucket with a rated capacity of 1.03 m3 (36.1 cu.ft), or 87" (2200 mm) grading bucket with a rated capacity of 0.65 m3 (22.7 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 7614, 7615, 7718
Front Tires 14.9R30
Rear Tires 18.4R42
Hydraulic Pressure, psi (bar) 2900 (200)

Loader
Loader Model MF 961 NSL
Leveling Configuration Non self leveling
Lift cylinder diameter, in (mm) 3.56/1.98 (90/50)
Bucket cylinder diameter, in (mm) 3.36/1.58 (85/40)
Weight, lb (kg) 1382 (628)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 803 (365)

High Volume Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 43 (1090)
Height, in (mm) 38.5 (980)
Heaped Capacity, cu.ft (m3) 59.5 (1.71)
Weight, lb (kg) 913 (415)

Grading Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 43.3 (1100)
Height, in (mm) 19.7 (500)
Heaped Capacity, cu.ft (m3) 22.7 (0.65)
Weight, lb (kg) 740 (337)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 168.0 (4270)
Maximum lift height under level bucket, in (mm) 156.1 (3950)
Maximum dump angle at maximum height, degrees 52
Maximum rollback angle at ground level, degrees 45

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 5962 (2710)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) 4334 (1970)
Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) 4356 (1980)
Breakout force at pivot pin, lb (kg) 7084 (3220)
Rollback force at ground level, lb (kg) 7392 (3360)
