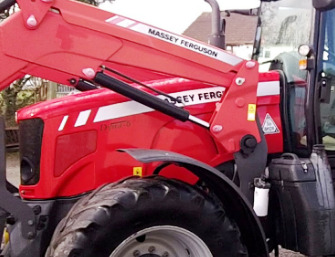

Massey Ferguson 965 Loader
The
MF 965 MSL loader fits Massey Ferguson 6465, 6475, 6480, 7465, 7480 tractors.
The loader has double acting bucket and lift hydraulic cylinders. The Massey
Ferguson 965 front-end loader has a max lift height of 166" (4220 mm) at pin and
bucket dump clearance of 126" (3190 mm). The lift capacity is 4806 lbs (2180 kg)
to max height at pin, and boom breakout force is 5644 lbs (2560 kg).
The rated cycle times are 6.1 seconds raising to maximum height, and 1.7
seconds maximum bucket dumping. The MF 965 loader is equipped with the
following buckets: a 95" (2400 mm) standard material bucket with a
heaped capacity of 0.95 m3 (33.2 cu.ft), and 102" (2600 mm) heavy-duty
material bucket with a heaped capacity of 1.03 m3 (36.1 cu.ft).
| Tractor Models |
Massey Ferguson 6465, 6475, 6480, 7465, 7480 |
| Front Tires |
14.9R28 |
| Rear Tires |
18.4R38 |
| Pump Capacity, gpm (lpm) |
15.6 (59.0) |
| Hydraulic Pressure, psi (bar) |
2900 (200) |
| Loader Model |
MF 965 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Loader Weight, lbs (kg) |
1566 (721) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
647 (294) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
36.1 (1.03) |
| Weight, lb (kg) |
803 (365) |
| Maximum Lift Height to Pivot Pin, in (mm) |
166 (4220) |
| Maximum Lift Height under Level Bucket, in (mm) |
155 (3930) |
| Clearance with Bucket Dumped, in (mm) |
126 (3190) |
| Reach at Maximum Lift Height, in (mm) |
18 (450) |
| Maximum Dump Angle, degrees |
56 |
| Reach with Bucket on Ground, in (mm) |
90 (2290) |
| Maximum Rollback Angle, degrees |
41 |
| Digging Depth, in (mm) |
6 (150) |
| Lift Capacity to Max Height at Pivot Pins, lbs (kg) |
4806 (2180) |
| Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) |
4189 (1900) |
| Max Breakout Force at Pivot Pins, lbs (kg) |
5644 (2560) |
| Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) |
4806 (2180) |
| Loader Raise, sec |
6,1 |
| Loader Lower, sec |
3,8 |
| Bucket Dump, sec |
1,7 |
